Honda HRB536C2 - TXE - MZCB 6200001-9999999 Oil Pan Diagram

Name: Honda HRB536C2 - TXE - MZCB 6200001-9999999 Oil Pan Diagram
SKU: hrb536c2_txe_mzcb_6200001_9999999_oil_pan-group
Price: 0.78 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB536C2 - TXE - MZCB 6200001-9999999 Oil Pan Diagram

Description

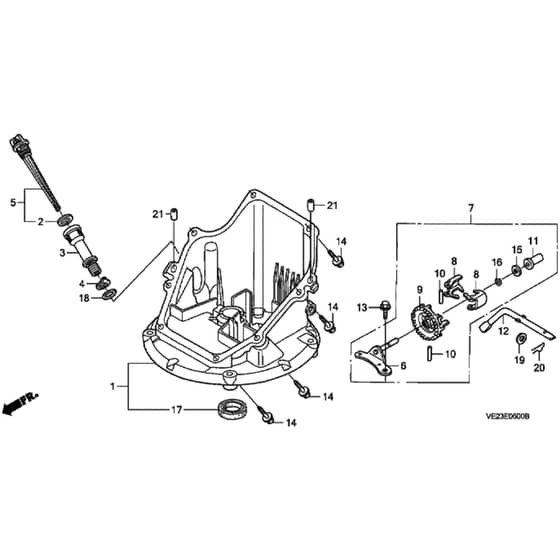

Honda HRB536C2 - TXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-ZM0-409 Out of stock	Crankcase Assy	£162.12 £135.10
2	HP15625-ZE6-000 Out of stock	Gasket	£3.16 £2.63
3	HP15631-ZM0-000 Out of stock	Dipstick Tube	£9.11 £7.59
4	HP15639-ZM0-000 Out of stock	Extension Lock Washer	£0.94 £0.78
5	HP15650-ZM0-801 In stock	Oil Level Gauge Assy	Was £9.60 £8.00 Special Price £6.53 £5.44
6	HP16508-ZM0-010 Out of stock	Governor Holder Shaft	£7.31 £6.09
7	HP16510-ZM0-010 Out of stock	Governor Assy	£23.15 £19.29
8	HP16511-ZL8-000 Out of stock	Governor Weight	£1.80 £1.50
9	HP16512-ZM0-000 Out of stock	Governor Weight Holder	£6.34 £5.28
10	HP16513-ZE1-000 Out of stock	Governor Weight Pin	£2.32 £1.93
11	HP16531-ZE1-000 Out of stock	Governor Slider	£4.96 £4.13
12	HP16541-ZM0-000 Out of stock	Governor Arm Shaft	£5.26 £4.38
13	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
14	HP90121-952-000 Out of stock	Flange Bolt 6 X 25	£3.07 £2.56
15	HP90451-ZE1-000 Out of stock	Thrust Washer 6mm	£2.16 £1.80
16	HP90602-ZE1-000 Out of stock	Governor Holder Clip	£3.91 £3.26
17	HP91202-ZL8-003 Out of stock	Oil Seal 28 X 41.25 X 6	£9.90 £8.25
18	HP91303-KF0-003 Out of stock	O-Ring 14.8 X 2.4	£5.48 £4.57
19	HP94101-06800 Out of stock	Plain Washer 6mm	£1.09 £0.91
20	HP94251-08000 Out of stock	Lock Pin 8mm	£1.75 £1.46
21	HP94301-08200 Out of stock	Dowel Pin 8 X 20	£2.52 £2.10
