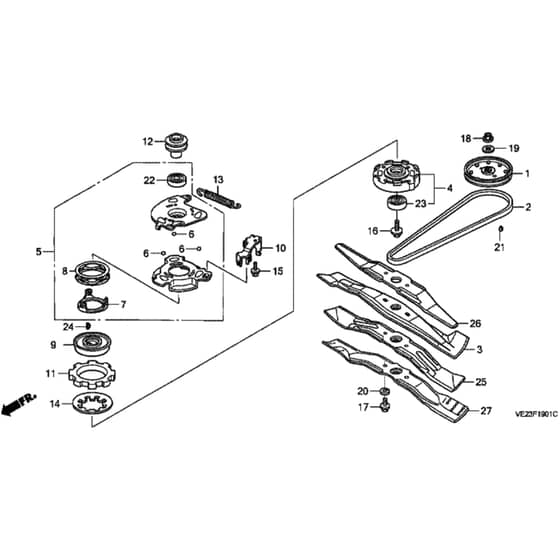

Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Rotary Blade (2) Diagram

Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Rotary Blade (2) Diagram
Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Rotary Blade (2) Diagram

Description

Honda HRB536C1 - TXFA Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pulley
Pulley
HP22420-VE2-J00 Out of stock
Pulley
£58.08 £48.40

  2 Belt
Belt
HP22431-VE1-T00 Out of stock
Belt
£26.00 £21.67

  2 Belt
Belt
HP22431-VE2-J00 Out of stock
Belt
£30.00 £25.00

  3 Blade
Blade
HP72511-VE1-652 In stock
Blade
£45.44 £37.87

  4 Blade Holder Assy
Blade Holder Assy
HP72600-VE1-G00 Out of stock
Blade Holder Assy
£75.24 £62.70

  5 Ball Control Plate
Ball Control Plate
HP75110-VE1-R00 Out of stock
Ball Control Plate
£84.90 £70.75

  6 Bearing
Bearing
HP75117-VE1-G00 Out of stock
Bearing
£3.96 £3.30

  7 Spring Hook Plate
Spring Hook Plate
HP75127-VE1-G00 In stock
Spring Hook Plate
£16.34 £13.62

  8 Spring
Spring
HP75132-VE1-G00 Out of stock
Spring
£12.00 £10.00

  9 Drive Disk
Drive Disk
HP75141-VE1-G00 Out of stock
Drive Disk
£34.98 £29.15

  10 Return Spring Hook
Return Spring Hook
HP75143-VE1-G00 Out of stock
Return Spring Hook
£7.58 £6.32

  11 Driven Disk Assy
Driven Disk Assy
HP75150-VE1-G02 Out of stock
Driven Disk Assy
£75.32 £62.77

  12 Pulley
Pulley
HP75162-VE1-G00 Out of stock
Pulley
£36.89 £30.74

  13 Clutch Return Spring
Clutch Return Spring
HP75182-VE1-G02 Out of stock
Clutch Return Spring
£9.46 £7.88

  14 Clutch Spring
Clutch Spring
HP75183-VE1-G01 In stock
Clutch Spring
£11.16 £9.30

  15 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  16 Flange Bolt 10 X 24
Flange Bolt 10 X 24
HP90101-VE1-G00 Out of stock
Flange Bolt 10 X 24
£2.99 £2.49

  17 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  18 Nut
Nut
HP90304-GA6-003 Out of stock
Nut
£4.92 £4.10

  19 Thrust Washer
Thrust Washer
HP90405-KV3-000 Out of stock
Thrust Washer
£3.58 £2.98

  20 Spring Washer 10Mm
Spring Washer 10Mm
HP90502-VG3-000 Out of stock
Spring Washer 10Mm
£1.39 £1.16

  21 Woodruff Key
Woodruff Key
HP90751-VE2-M00 Out of stock
Woodruff Key
£0.35 £0.29

  22 Bearing
Bearing
HP91051-VE1-G00 Out of stock
Bearing
£27.08 £22.57

  23 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  24 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57


Description

Honda HRB536C1 - TXFA Rotary Mower Parts Diagram
