Description

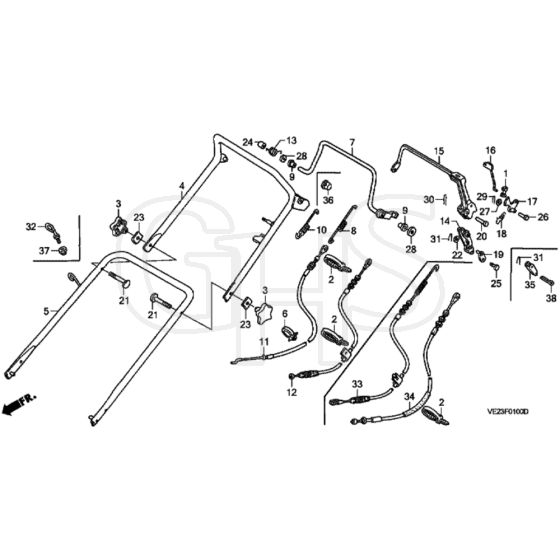

Honda HRB536C1 - TXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  2 Cable Tie
Cable Tie
HP32901-VB5-A00 Out of stock
Cable Tie
£5.29 £4.41

  3 Handle Grip
Handle Grip
HP53125-VA4-K10 Out of stock
Handle Grip
£14.29 £11.91

  4 Upper Handle
Upper Handle
HP53150-VA3-J00ZA Out of stock
Upper Handle
£155.98 £129.98

  5 Lower Handle Assy
Lower Handle Assy
HP53150-VE1-W51ZB Out of stock
Lower Handle Assy
£84.36 £70.30

  6 Clip
Clip
HP53735-SE0-961 Out of stock
Clip
£7.88 £6.57

  7 Clutch Lever Assy
Clutch Lever Assy
HP54410-VA3-J00 Out of stock
Clutch Lever Assy
£73.32 £61.10

  8 Clutch Spring
Clutch Spring
HP54411-VB3-800 In stock
Clutch Spring
£9.92 £8.27

  9 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  10 Clutch Lever Return Spring
Clutch Lever Return Spring
HP54414-VA3-P00 In stock
Clutch Lever Return Spring
£6.12 £5.10

  12 Roto-Stop Cable
Roto-Stop Cable
HP54530-VE1-T50 Out of stock
Roto-Stop Cable
£19.69 £16.41

  12 Roto-Stop Cable
Roto-Stop Cable
HP54530-VE2-M12 Out of stock
Roto-Stop Cable
£25.93 £21.61

  13 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  14 Cable Arm
Cable Arm
HP75128-VE0-L00 Out of stock
Cable Arm
£14.41 £12.01

  15 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VE0-L01 Out of stock
Roto-Stop Lever Assy
£58.56 £48.80

  16 Ratchet Push Rod
Ratchet Push Rod
HP75165-VE0-L00 Out of stock
Ratchet Push Rod
£9.96 £8.30

  17 Lock Lever
Lock Lever
HP75166-VE0-L00 Out of stock
Lock Lever
£7.10 £5.92

  18 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  19 Lock Lever Pin Assy
Lock Lever Pin Assy
HP75192-VE0-L00 Out of stock
Lock Lever Pin Assy
£2.04 £1.70

  20 Clutch Lever Pin
Clutch Lever Pin
HP90106-VA4-800 Out of stock
Clutch Lever Pin
£9.95 £8.29

  21 Handle Bolt
Handle Bolt
HP90109-VA4-000 Out of stock
Handle Bolt
£10.62 £8.85

  23 Frame Joint Washer
Frame Joint Washer
HP90501-898-000 Out of stock
Frame Joint Washer
£3.96 £3.30

  24 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  25 Cable Joint Pin (up to ser no. 6122160)
Cable Joint Pin (up to ser no. 6122160)
HP90702-VE0-L01 Out of stock
Cable Joint Pin (up to ser no. 6122160)
£3.24 £2.70

  25 Cable Joint Pin (ser no. 6122161 +)
Cable Joint Pin (ser no. 6122161 +)
HP90754-VA9-P40 Out of stock
Cable Joint Pin (ser no. 6122161 +)
£3.08 £2.57

  26 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 Out of stock
Lever Hinge Lock Pin
£4.13 £3.44

  27 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06000 Out of stock
Plain Washer 6Mm
£1.40 £1.17

  28 Plain Washer 8mm
Plain Washer 8mm
HP94101-08000 Out of stock
Plain Washer 8mm
£1.09 £0.91

  29 Lock Pin 6mm
Lock Pin 6mm
HP94251-06000 Out of stock
Lock Pin 6mm
£1.45 £1.21

  30 Lock Pin 8mm
Lock Pin 8mm
HP94251-08000 Out of stock
Lock Pin 8mm
£1.75 £1.46

  32 Rope Guide
Rope Guide
HP28475-VE1-V00 Out of stock
Rope Guide
£3.72 £3.10

  33 Clutch Cable
Clutch Cable
HP54510-VE1-T50 Out of stock
Clutch Cable
£34.22 £28.52

  37 Lock Nut 6mm
Lock Nut 6mm
HP90303-VG3-000 Out of stock
Lock Nut 6mm
£0.62 £0.52
