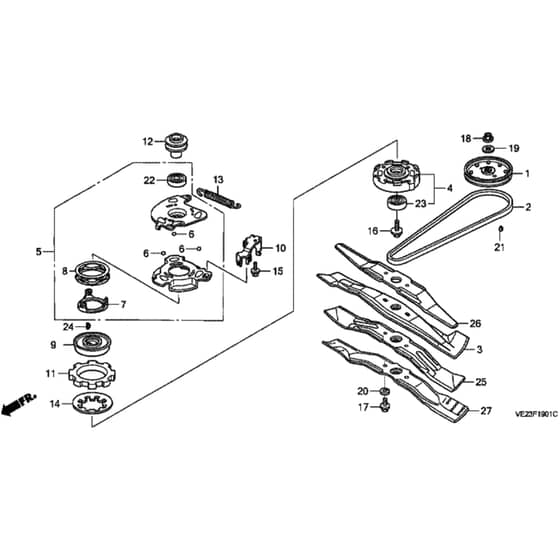

Honda HRB536C1 - HXE - MZCB 6100001-6199999 Rotary Blade Diagram (ser no. 6122161 +)

Description

Honda HRB536C1 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE2-J00 Out of stock	Pulley	£58.08 £48.40
2	HP22431-VE2-J00 Out of stock	Belt	£30.00 £25.00
3	HP72511-VE1-652 In stock	Blade	£45.44 £37.87
4	HP72600-VE1-G00 Out of stock	Blade Holder Assy	£75.24 £62.70
5	HP75110-VE1-R00 Out of stock	Ball Control Plate	£84.90 £70.75
6	HP75117-VE1-G00 Out of stock	Bearing	£3.96 £3.30
7	HP75127-VE1-G00 Out of stock	Spring Hook Plate	£16.34 £13.62
8	HP75132-VE1-G00 Out of stock	Spring	£12.00 £10.00
9	HP75141-VE1-G00 Out of stock	Drive Disk	£34.98 £29.15
10	HP75143-VE1-G00 Out of stock	Return Spring Hook	£7.58 £6.32
11	HP75150-VE1-G02 Out of stock	Driven Disk Assy	£75.32 £62.77
12	HP75162-VE1-G00 Out of stock	Pulley	£36.89 £30.74
13	HP75182-VE1-G02 Out of stock	Clutch Return Spring	£9.46 £7.88
14	HP75183-VE1-G01 In stock	Clutch Spring	£11.16 £9.30
15	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
16	HP90101-VE1-G00 Out of stock	Flange Bolt 10 X 24	£2.99 £2.49
17	HP90105-960-710 Out of stock	Blade Bolt	£2.65 £2.21
18	HP90304-GA6-003 Out of stock	Nut	£4.92 £4.10
19	HP90405-KV3-000 Out of stock	Thrust Washer	£3.58 £2.98
20	HP90502-VG3-000 Out of stock	Spring Washer 10mm	£1.39 £1.16
21	HP90751-VE2-M00 Out of stock	Woodruff Key	£0.35 £0.29
22	HP91051-VE1-G00 Out of stock	Bearing	£27.08 £22.57
23	HP91102-VA4-013 In stock	Bearing	£29.38 £24.48
24	HP94401-16150 In stock	Woodruff Key	£0.68 £0.57
