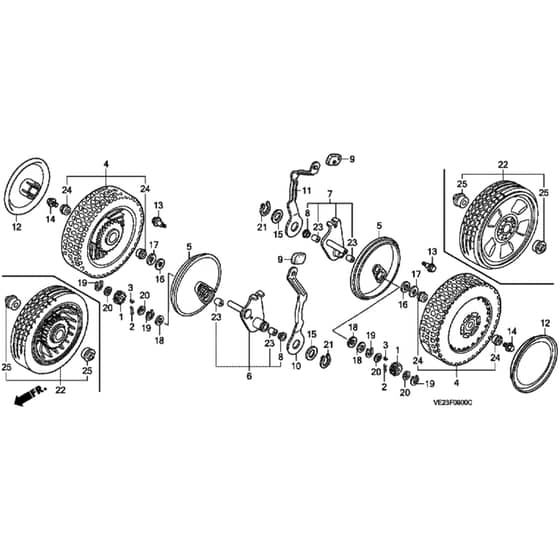

Honda HRB536C1 - HXE - MZCB 6100001-6199999 Rear Wheel Diagram

Description

Honda HRB536C1 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£9.32 £7.77
2	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
3	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
5	HP42866-VE2-800 Out of stock	Cover	£19.24 £16.03
6	HP42930-VE2-405 Out of stock	Adjuster Arm Assy Rear R H	£25.43 £21.19
7	HP42940-VE2-405 Out of stock	Adjuster Arm Front L H	£25.42 £21.18
8	HP42944-VE2-801 In stock	Dust Seal 12.7mm	£9.66 £8.05
9	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
10	HP42961-VE2-000 Out of stock	Rear Adjuster Plate R H	£26.68 £22.23
11	HP42966-VE2-000 Out of stock	Adjuster L H	£28.36 £23.63
13	HP90103-VE2-801 Out of stock	Tapping Screw	£1.82 £1.52
14	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
15	HP90403-952-770 Out of stock	Plain Washer 22mm	£3.32 £2.77
16	HP90505-VG3-000 Out of stock	Thrust Washer 13 X 27 X 1	£0.85 £0.71
17	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
18	HP90502-VE2-800 Out of stock	Thrust Washer 13mm	£3.96 £3.30
19	HP90651-VE2-800 In stock	External Circlip 12.7mm	£1.46 £1.22
20	HP91559-VE2-800 In stock	Pinion Gear Collar	£2.08 £1.73
21	HP94511-22000 Out of stock	External Circlip 22mm	£2.34 £1.95
22	HP42710-VE2-M02ZE In stock	Wheel	£49.61 £41.34
23	HP44327-VE2-801 In stock	Drive Shaft Bush	£8.35 £6.96
25	HP91053-VE2-M00 In stock	Bearing	£4.57 £3.81
