Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (HXE) Diagram

Name: Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (HXE) Diagram
SKU: hrb536c_sxf_mzcb_6000001_6099999_throttle_lever_hxe_-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

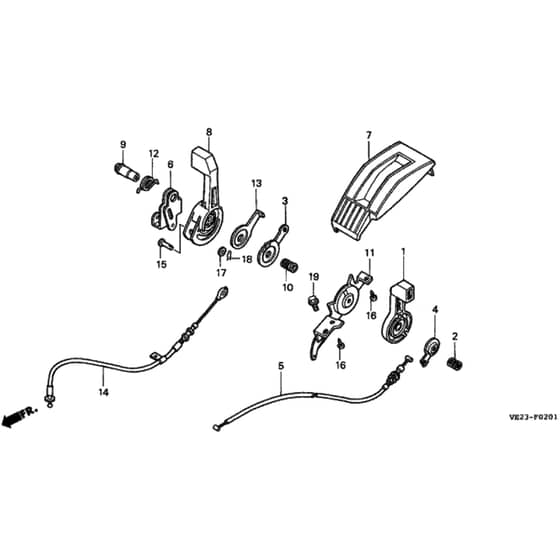

Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (HXE) Diagram

Description

Honda HRB536C - SXF Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£15.01 £12.51
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.76 £3.97
3	HP17859-VA3-P00 Out of stock	Seat Spring	£6.77 £5.64
4	HP17859-VA3-800 Out of stock	Seat Spring	£7.62 £6.35
5	HP17910-VE1-R42 Out of stock	Throttle Cable	£39.97 £33.31
6	HP24412-VE0-J50 Out of stock	Change Arm Lever	£19.49 £16.24
7	HP54231-VA3-800 Out of stock	Control Cover	£43.74 £36.45
8	HP54311-VE0-J50 Out of stock	Change Lever	£20.03 £16.69
9	HP54313-VA3-P00 Out of stock	Change Lever Nut	£9.46 £7.88
10	HP54314-VA3-P00 Out of stock	Change Lever Spring	£3.24 £2.70
11	HP54315-VA3-P00 Out of stock	Stopper Plate	£25.78 £21.48
12	HP54318-VA3-P00 Out of stock	Arm Return Spring	£4.03 £3.36
13	HP54319-VA3-P00 Out of stock	Thrust Plate	£16.97 £14.14
14	HP54630-VE1-J11 In stock	Speed Change Cable	£55.12 £45.93
15	HP90752-VA3-P01 Out of stock	Pin 6 X 22	£3.72 £3.10
16	HP93901-35210 Out of stock	Tapping Screw	£1.80 £1.50
17	HP94101-06000 Out of stock	Plain Washer 6Mm	£1.40 £1.17
18	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
19	HP95701-0601000 Out of stock	Bolt	£1.69 £1.41
