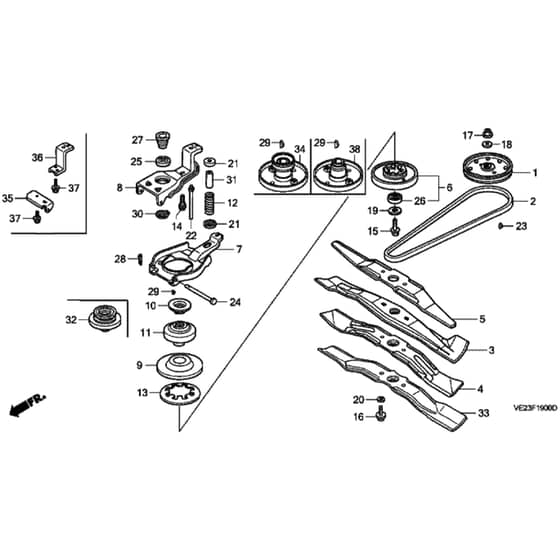

Honda HRB536C - SXF - MZCB 6000001-6099999 Rotary Blade Diagram

Honda HRB536C - SXF - MZCB 6000001-6099999 Rotary Blade Diagram
Honda HRB536C - SXF - MZCB 6000001-6099999 Rotary Blade Diagram

Description

Honda HRB536C - SXF Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pulley
Pulley
HP22420-VF0-000 Out of stock
Pulley
£68.28 £56.90

  1 Pulley
Pulley
HP22420-VE2-J00 Out of stock
Pulley
£58.08 £48.40

  2 Belt
Belt
HP22431-VE2-801 Out of stock
Belt
£30.20 £25.17

  3 Blade
Blade
HP72511-VE1-652 In stock
Blade
£45.44 £37.87

  6 Blade Holder Assy
Blade Holder Assy
HP72600-VE0-000 Out of stock
Blade Holder Assy
£86.40 £72.00

  7 Brake Arm Assy
Brake Arm Assy
HP75130-VE0-020 Out of stock
Brake Arm Assy
£79.86 £66.55

  8 Clutch Return Spring Holder
Clutch Return Spring Holder
HP75149-VE1-R41 Out of stock
Clutch Return Spring Holder
£41.74 £34.78

  9 Driven Disk
Driven Disk
HP75151-VE0-000 Out of stock
Driven Disk
£154.16 £128.47

  12 Clutch Return Spring
Clutch Return Spring
HP75182-VE0-000 Out of stock
Clutch Return Spring
£12.12 £10.10

  13 Clutch Spring
Clutch Spring
HP75183-VE0-000 Out of stock
Clutch Spring
£32.52 £27.10

  14 Flange Bolt 6Mm
Flange Bolt 6Mm
HP90001-VE1-R40 Out of stock
Flange Bolt 6Mm
£3.70 £3.08

  15 Bolt Hex 10 X 25
Bolt Hex 10 X 25
HP90105-VA3-J01 In stock
Bolt Hex 10 X 25
£3.90 £3.25

  16 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  17 Nut
Nut
HP90304-GA6-003 Out of stock
Nut
£4.92 £4.10

  18 Thrust Washer
Thrust Washer
HP90405-KV3-000 Out of stock
Thrust Washer
£3.58 £2.98

  19 Washer 10Mm
Washer 10Mm
HP90409-952-000 In stock
Washer 10Mm
£1.40 £1.17

  20 Washer
Washer
HP90481-430-000 In stock
Washer
£4.42 £3.68

  21 Washer
Washer
HP90557-461-000 Out of stock
Washer
£2.33 £1.94

  22 Spring Guide Pin
Spring Guide Pin
HP90701-VE0-000 In stock
Spring Guide Pin
£17.44 £14.53

  23 Woodruff Key
Woodruff Key
HP90751-VE2-M00 Out of stock
Woodruff Key
£0.35 £0.29

  24 Bonnet Hinge Pin
Bonnet Hinge Pin
HP90756-735-000 Out of stock
Bonnet Hinge Pin
£8.24 £6.87

  25 Bearing
Bearing
HP91010-P2A-003 Out of stock
Bearing
£34.66 £28.88

  26 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  27 Thrust Collar
Thrust Collar
HP91551-VE1-R41 Out of stock
Thrust Collar
£53.09 £44.24

  28 Split Pin 2.0 X 15
Split Pin 2.0 X 15
HP94201-20150 Out of stock
Split Pin 2.0 X 15
£1.69 £1.41

  29 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57

  30 External Circlip 35Mm
External Circlip 35Mm
HP94510-35000 Out of stock
External Circlip 35Mm
£2.47 £2.06

  31 Clutch Spring Holder
Clutch Spring Holder
HP75181-VE1-R40 Out of stock
Clutch Spring Holder
£1.18 £0.98

  32 Pulley
Pulley
HP75160-VE1-R40 In stock
Pulley
£116.75 £97.29


Description

Honda HRB536C - SXF Rotary Mower Parts Diagram
