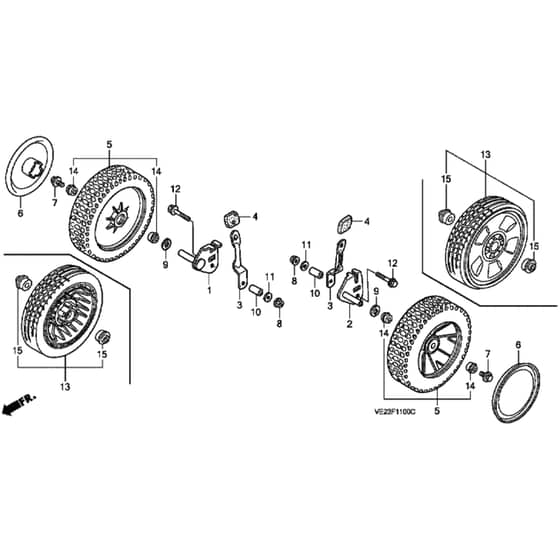

Honda HRB536C - SXE - MZCB 6000001-6099999 Front Wheel Diagram

Honda HRB536C - SXE - MZCB 6000001-6099999 Front Wheel Diagram
Honda HRB536C - SXE - MZCB 6000001-6099999 Front Wheel Diagram

Description

Honda HRB536C - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Front Adjuster Arm R H
Front Adjuster Arm R H
HP42911-VE1-L10 Out of stock
Front Adjuster Arm R H
£22.06 £18.38

  2 Adjuster Arm Front L H
Adjuster Arm Front L H
HP42921-VE1-L10 Out of stock
Adjuster Arm Front L H
£23.62 £19.68

  3 Front Adjuster Plate
Front Adjuster Plate
HP42951-VE2-000 In stock
Front Adjuster Plate
£16.00 £13.33

  4 Adjuster Grip
Adjuster Grip
HP42952-VG3-000ZA In stock
Adjuster Grip
£1.56 £1.30

  5 Front Wheel
Front Wheel
HP44710-VE0-751ZB Out of stock
Front Wheel
£43.66 £36.38

  6 Hub Cap
Hub Cap
HP44719-VE0-751ZA In stock
Hub Cap
£3.88 £3.23

  7 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  8 Nut
Nut
HP90115-659-003 Out of stock
Nut
£6.30 £5.25

  9 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  10 Arm Collar
Arm Collar
HP91557-VE0-000 Out of stock
Arm Collar
£11.58 £9.65

  11 Plain Washer 8mm
Plain Washer 8mm
HP94103-08000 Out of stock
Plain Washer 8mm
£0.48 £0.40

  12 Flange Bolt 8 X 50
Flange Bolt 8 X 50
HP95801-0805000 Out of stock
Flange Bolt 8 X 50
£2.60 £2.17

  14 Bearing
Bearing
HP91051-VE0-750 In stock
Bearing
£11.40 £9.50


Description

Honda HRB536C - SXE Rotary Mower Parts Diagram
