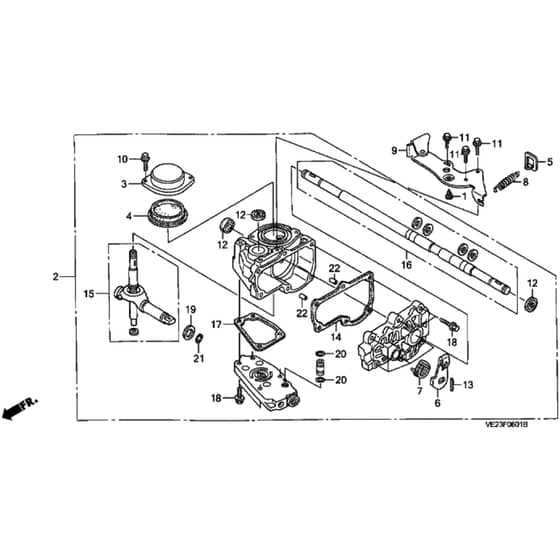

Honda HRB536C - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Stopper
Stopper
HP17502-GAA-000 Out of stock
Stopper
£3.00 £2.50

  3 Oil Cap Assy
Oil Cap Assy
HP21230-VE5-A00 Out of stock
Oil Cap Assy
£24.31 £20.26

  4 Oil Cap O Ring
Oil Cap O Ring
HP21235-VE5-303 Out of stock
Oil Cap O Ring
£9.32 £7.77

  5 Tension Spring Plate
Tension Spring Plate
HP21557-VE2-800 Out of stock
Tension Spring Plate
£8.20 £6.83

  6 Control Arm
Control Arm
HP22533-VE5-A00 Out of stock
Control Arm
£16.30 £13.58

  7 Control Arm Return Spring
Control Arm Return Spring
HP24134-VE5-A00 Out of stock
Control Arm Return Spring
£2.94 £2.45

  8 Wheel Tension Spring
Wheel Tension Spring
HP24468-VE2-800 Out of stock
Wheel Tension Spring
£9.59 £7.99

  9 Wire Holder
Wire Holder
HP51125-VE2-J00 Out of stock
Wire Holder
£59.42 £49.52

  10 Flange Bolt 5X12
Flange Bolt 5X12
HP90003-892-000 Out of stock
Flange Bolt 5X12
£2.23 £1.86

  11 Flange Bolt 6 X 16
Flange Bolt 6 X 16
HP90029-888-000 Out of stock
Flange Bolt 6 X 16
£4.36 £3.63

  12 Oil Seal
Oil Seal
HP91204-KE8-003 Out of stock
Oil Seal
£5.80 £4.83

  13 Spring Pin 4 X 25
Spring Pin 4 X 25
HP94305-40252 Out of stock
Spring Pin 4 X 25
£2.52 £2.10

  14 Gasket
Gasket
HP21115-VE5-000 Out of stock
Gasket
£8.34 £6.95

  15 Pump Set
Pump Set
HP25010-VE5-A00 Out of stock
Pump Set
£182.76 £152.30

  16 Shaft Set
Shaft Set
HP25013-VE5-A20 Out of stock
Shaft Set
£220.84 £184.03

  17 Gasket
Gasket
HP25513-VE5-000 Out of stock
Gasket
£9.78 £8.15

  18 Flange Bolt
Flange Bolt
HP90123-VA4-800 Out of stock
Flange Bolt
£3.24 £2.70

  19 Thrust Washer
Thrust Washer
HP90453-235-000 Out of stock
Thrust Washer
£2.84 £2.37

  20 O-Ring
O-Ring
HP91351-VE5-000 Out of stock
O-Ring
£2.36 £1.97

  21 O-Ring
O-Ring
HP91352-VE5-000 Out of stock
O-Ring
£3.08 £2.57

  22 Dowel Pin 8 X 10
Dowel Pin 8 X 10
HP94301-08100 Out of stock
Dowel Pin 8 X 10
£2.52 £2.10
