Honda HRB535K3 - SXE - MZBA 6300001-6399999 Rotary Blade Diagram

Name: Honda HRB535K3 - SXE - MZBA 6300001-6399999 Rotary Blade Diagram
SKU: hrb535k3_sxe_mzba_6300001_6399999_rotary_blade-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

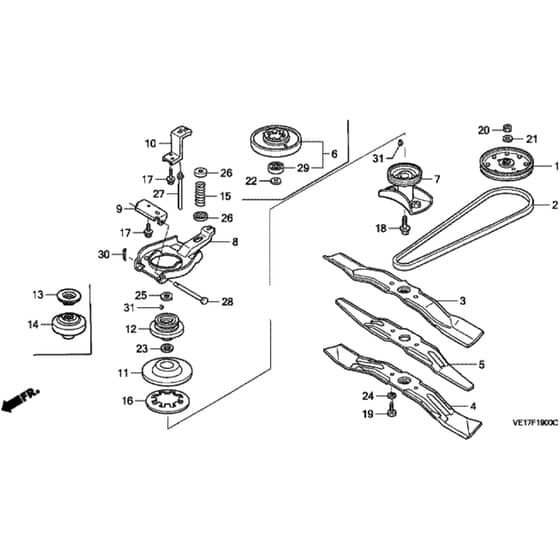

Honda HRB535K3 - SXE - MZBA 6300001-6399999 Rotary Blade Diagram

Description

Honda HRB535K3 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE2-M00 Out of stock	Pulley	£58.08 £48.40
2	HP22431-VE2-801 Out of stock	Belt	£30.20 £25.17
3	HP72511-VE1-652 In stock	Blade	£45.44 £37.87
6	HP72600-VE0-000 Out of stock	Blade Holder Assy	£86.40 £72.00
8	HP75130-VE0-020 Out of stock	Brake Arm Assy	£79.86 £66.55
9	HP75148-VE0-000 Out of stock	Clutch Arm Hinge	£7.34 £6.12
10	HP75149-VE0-000 Out of stock	Holder	£24.72 £20.60
11	HP75151-VE0-000 Out of stock	Driven Disk	£154.16 £128.47
13	HP75161-VE2-801 Out of stock	Pulley	£69.24 £57.70
14	HP75162-VE2-801 Out of stock	Pulley	£84.36 £70.30
15	HP75182-VE0-000 Out of stock	Clutch Return Spring	£12.12 £10.10
16	HP75183-VE0-000 Out of stock	Clutch Spring	£32.52 £27.10
17	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
18	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£3.90 £3.25
19	HP90105-960-710 Out of stock	Blade Bolt	£2.65 £2.21
20	HP90301-VE2-800 Out of stock	Nut	£5.98 £4.98
21	HP90405-KV3-000 Out of stock	Thrust Washer	£3.58 £2.98
22	HP90409-952-000 In stock	Washer 10mm	£1.40 £1.17
24	HP90481-430-000 In stock	Washer	£4.42 £3.68
26	HP90557-461-000 Out of stock	Washer	£2.33 £1.94
27	HP90701-VE0-000 In stock	Spring Guide Pin	£17.44 £14.53
28	HP90756-735-000 Out of stock	Bonnet Hinge Pin	£8.24 £6.87
29	HP91102-VA4-013 In stock	Bearing	£29.38 £24.48
30	HP94201-20150 Out of stock	Split Pin 2.0 X 15	£1.69 £1.41
31	HP94401-16150 In stock	Woodruff Key	£0.68 £0.57
