Honda HRB535K3 - SXE - MZBA 6300001-6399999 Handle Pipe Diagram

Honda HRB535K3 - SXE - MZBA 6300001-6399999 Handle Pipe Diagram
Honda HRB535K3 - SXE - MZBA 6300001-6399999 Handle Pipe Diagram

Description

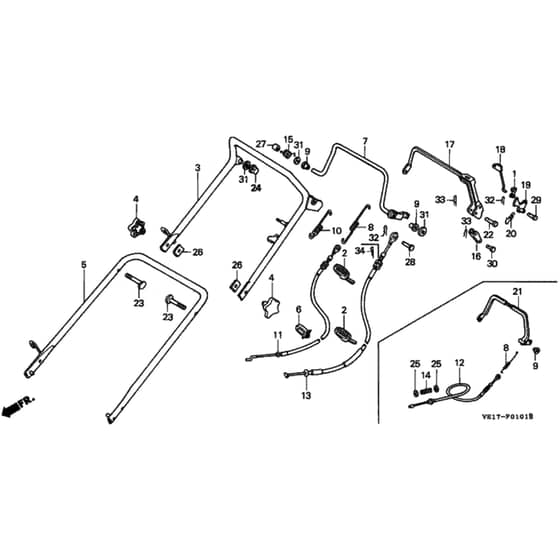

Honda HRB535K3 - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  2 Cable Tie
Cable Tie
HP32901-VB5-A00 Out of stock
Cable Tie
£5.29 £4.41

  3 Upper Handle
Upper Handle
HP53150-VA3-J00ZD Out of stock
Upper Handle
£118.44 £98.70

  4 Handle Grip
Handle Grip
HP53125-VA4-K10 Out of stock
Handle Grip
£14.29 £11.91

  5 Lower Handle (up to ser no. 6303004)
Lower Handle (up to ser no. 6303004)
HP53150-VE2-M10ZA Out of stock
Lower Handle (up to ser no. 6303004)
£75.10 £62.58

  5 Lower Handle (ser no. 6303005 +)
Lower Handle (ser no. 6303005 +)
HP53150-VE1-M50ZA Out of stock
Lower Handle (ser no. 6303005 +)
£85.16 £70.97

  6 Clip
Clip
HP53735-SE0-961 Out of stock
Clip
£7.88 £6.57

  7 Clutch Lever Assy
Clutch Lever Assy
HP54410-VA3-J00 Out of stock
Clutch Lever Assy
£73.32 £61.10

  8 Clutch Spring
Clutch Spring
HP54411-VA3-J00 Out of stock
Clutch Spring
£8.04 £6.70

  9 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  10 Clutch Lever Return Spring
Clutch Lever Return Spring
HP54414-VA3-P00 In stock
Clutch Lever Return Spring
£6.12 £5.10

  11 Clutch Cable
Clutch Cable
HP54510-VE2-306 In stock
Clutch Cable
£34.21 £28.51

  13 Roto-Stop Cable
Roto-Stop Cable
HP54530-VE2-M12 Out of stock
Roto-Stop Cable
£27.35 £22.79

  15 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  16 Roto-Stop Arm
Roto-Stop Arm
HP75130-VE1-L10 Out of stock
Roto-Stop Arm
£28.20 £23.50

  17 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VA3-J01 Out of stock
Roto-Stop Lever Assy
£115.44 £96.20

  18 Ratchet Push Rod
Ratchet Push Rod
HP75165-VA3-J00 Out of stock
Ratchet Push Rod
£19.75 £16.46

  19 Lock Lever
Lock Lever
HP75166-VA3-J01 Out of stock
Lock Lever
£20.23 £16.86

  20 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  22 Clutch Lever Pin
Clutch Lever Pin
HP90106-VA4-800 Out of stock
Clutch Lever Pin
£9.95 £8.29

  23 Handle Bolt
Handle Bolt
HP90109-VA4-000 Out of stock
Handle Bolt
£10.62 £8.85

  26 Frame Joint Washer
Frame Joint Washer
HP90501-898-000 Out of stock
Frame Joint Washer
£3.96 £3.30

  27 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  29 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 Out of stock
Lever Hinge Lock Pin
£4.13 £3.44

  30 Cable Joint Pin
Cable Joint Pin
HP90754-VA3-J00 Out of stock
Cable Joint Pin
£4.20 £3.50

  31 Plain Washer 8mm
Plain Washer 8mm
HP94101-08000 Out of stock
Plain Washer 8mm
£1.09 £0.91

  32 Lock Pin 6mm
Lock Pin 6mm
HP94251-06000 Out of stock
Lock Pin 6mm
£1.45 £1.21

  33 Lock Pin 8mm
Lock Pin 8mm
HP94251-08000 Out of stock
Lock Pin 8mm
£1.75 £1.46

  34 Split Pin
Split Pin
HP94201-20100 Out of stock
Split Pin
£1.24 £1.03
