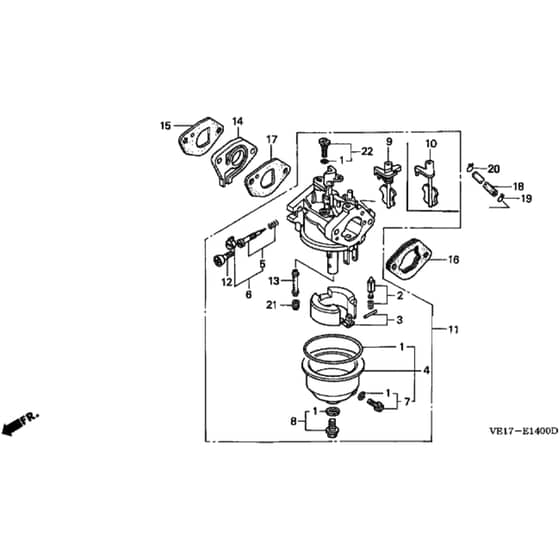

Honda HRB535K3 - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Gasket Set
Gasket Set
HP16010-ZB1-015 Out of stock
Gasket Set
£29.12 £24.27

  2 Float Valve Set
Float Valve Set
HP16011-ZE0-005 Out of stock
Float Valve Set
£37.46 £31.22

  3 Float Set
Float Set
HP16013-ZE0-005 Out of stock
Float Set
£36.17 £30.14

  4 Float Bowl Set
Float Bowl Set
HP16015-ZE0-831 Out of stock
Float Bowl Set
£47.88 £39.90

  5 Pilot Screw Set
Pilot Screw Set
HP16016-ZA0-931 Out of stock
Pilot Screw Set
£15.04 £12.53

  6 Screw Set
Screw Set
HP16016-ZH8-W01 Out of stock
Screw Set
£14.40 £12.00

  7 Drain Screw Set
Drain Screw Set
HP16024-ZE1-811 Out of stock
Drain Screw Set
£14.40 £12.00

  8 Screw Set
Screw Set
HP16028-ZK7-S91 Out of stock
Screw Set
£16.45 £13.71

  10 Choke Set
Choke Set
HP16045-ZE6-005 Out of stock
Choke Set
£40.48 £33.73

  11 Carburettor Assy (BE52B BC)
Carburettor Assy (BE52B BC)
HP16100-ZG9-M12 Out of stock
Carburettor Assy (BE52B BC)
£137.64 £114.70

  11 Carburettor Assy (BE52D BC)
Carburettor Assy (BE52D BC)
HP16100-ZG9-N11 Out of stock
Carburettor Assy (BE52D BC)
£158.40 £132.00

  12 Throttle Stop Screw
Throttle Stop Screw
HP16124-ZE0-005 Out of stock
Throttle Stop Screw
£13.70 £11.42

  13 Main Nozzle
Main Nozzle
HP16166-ZG9-M11 Out of stock
Main Nozzle
£42.80 £35.67

  14 Carburettor Insulator
Carburettor Insulator
HP16211-ZG9-000 Out of stock
Carburettor Insulator
£15.55 £12.96

  15 Carburettor Gasket
Carburettor Gasket
HP16212-ZG9-T00 Out of stock
Carburettor Gasket
£0.83 £0.69

  16 Carburettor Spacer
Carburettor Spacer
HP16220-ZE6-010 Out of stock
Carburettor Spacer
£7.99 £6.66

  17 Carburettor Gasket
Carburettor Gasket
HP16221-ZG9-T00 Out of stock
Carburettor Gasket
£5.04 £4.20

  18 Fuel Pipe
Fuel Pipe
HP17523-ZG9-M00 Out of stock
Fuel Pipe
£12.44 £10.37

  19 Tube Clip
Tube Clip
HP95002-02080 In stock
Tube Clip
£1.24 £1.03

  20 Tube Clip
Tube Clip
HP95002-02100 Out of stock
Tube Clip
£1.44 £1.20

  21 Main Jet
Main Jet
HP99101-ZH8-0520 Out of stock
Main Jet
£13.03 £10.86

  21 Main Jet
Main Jet
HP99101-ZH8-0500 Out of stock
Main Jet
£13.03 £10.86

  21 Main Jet
Main Jet
HP99101-ZH8-0550 Out of stock
Main Jet
£13.03 £10.86

  22 Jet Kit
Jet Kit
HP99204-ZE0-0350 Out of stock
Jet Kit
£28.02 £23.35
