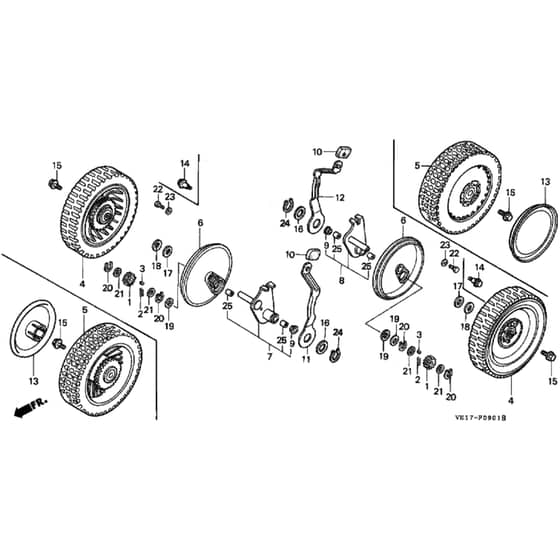

Honda HRB535K3 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pinion Gear
Pinion Gear
HP42661-VE2-800 In stock
Pinion Gear
£9.32 £7.77

  2 Pawl Spring
Pawl Spring
HP42668-VE2-800 In stock
Pawl Spring
£1.10 £0.92

  3 Ratchet Key
Ratchet Key
HP42672-VE2-800 In stock
Ratchet Key
£3.84 £3.20

  5 Rear Wheel
Rear Wheel
HP42710-VF1-000 Out of stock
Rear Wheel
£43.27 £36.06

  6 Cover
Cover
HP42866-VE2-800 Out of stock
Cover
£19.24 £16.03

  7 Adjuster Arm Assy Rear R H
Adjuster Arm Assy Rear R H
HP42930-VE2-405 Out of stock
Adjuster Arm Assy Rear R H
£25.43 £21.19

  8 Adjuster Arm Front L H
Adjuster Arm Front L H
HP42940-VE2-405 Out of stock
Adjuster Arm Front L H
£25.42 £21.18

  9 Dust Seal 12.7mm
Dust Seal 12.7mm
HP42944-VE2-801 In stock
Dust Seal 12.7mm
£9.66 £8.05

  10 Adjuster Grip
Adjuster Grip
HP42952-VG3-000ZA In stock
Adjuster Grip
£1.56 £1.30

  11 Rear Adjuster Plate R H
Rear Adjuster Plate R H
HP42961-VE2-000 Out of stock
Rear Adjuster Plate R H
£26.68 £22.23

  12 Adjuster L H
Adjuster L H
HP42966-VE2-000 Out of stock
Adjuster L H
£28.36 £23.63

  13 Wheel Cap
Wheel Cap
HP44719-VF0-010 Out of stock
Wheel Cap
£3.43 £2.86

  14 Tapping Screw
Tapping Screw
HP90103-VE2-801 Out of stock
Tapping Screw
£1.82 £1.52

  15 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  16 Plain Washer 22mm
Plain Washer 22mm
HP90403-952-770 Out of stock
Plain Washer 22mm
£3.32 £2.77

  17 Thrust Washer
Thrust Washer
HP90451-HB3-000 Out of stock
Thrust Washer
£2.84 £2.37

  18 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  19 Thrust Washer 13mm
Thrust Washer 13mm
HP90502-VE2-800 Out of stock
Thrust Washer 13mm
£3.96 £3.30

  20 External Circlip 12.7mm
External Circlip 12.7mm
HP90651-VE2-800 In stock
External Circlip 12.7mm
£1.46 £1.22

  21 Pinion Gear Collar
Pinion Gear Collar
HP91559-VE2-800 In stock
Pinion Gear Collar
£2.08 £1.73

  24 External Circlip 22mm
External Circlip 22mm
HP94511-22000 Out of stock
External Circlip 22mm
£2.34 £1.95

  25 Drive Shaft Bush
Drive Shaft Bush
HP44327-VE2-801 In stock
Drive Shaft Bush
£8.35 £6.96
