Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rear Wheel Diagram

Name: Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rear Wheel Diagram
SKU: hrb535k2_sxf_mzba_6200001_6299999_rear_wheel-group
Price: 0.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

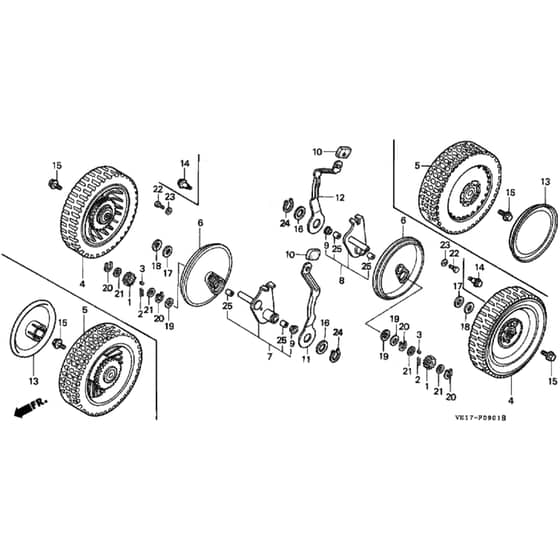

Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rear Wheel Diagram

Description

Honda HRB535K2 - SXF Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£9.32 £7.77
2	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
3	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
4	HP42710-VE2-800 Out of stock	Rear Wheel	£47.96 £39.97
6	HP42866-VE2-800 Out of stock	Cover	£19.24 £16.03
7	HP42930-VE2-405 Out of stock	Adjuster Arm Assy Rear R H	£25.43 £21.19
8	HP42940-VE2-405 Out of stock	Adjuster Arm Front L H	£25.42 £21.18
9	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£9.66 £8.05
10	HP42952-VA4-000 In stock	Adjuster Grip	£1.52 £1.27
10	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
11	HP42961-VE2-000 Out of stock	Rear Adjuster Plate R H	£26.68 £22.23
12	HP42966-VE2-000 Out of stock	Adjuster L H	£28.36 £23.63
14	HP90103-VE2-801 Out of stock	Tapping Screw	£1.82 £1.52
15	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
16	HP90403-952-770 Out of stock	Plain Washer 22Mm	£3.32 £2.77
17	HP90451-HB3-000 Out of stock	Thrust Washer	£2.84 £2.37
18	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
19	HP90502-VE2-800 Out of stock	Thrust Washer 13Mm	£3.96 £3.30
20	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.46 £1.22
21	HP91559-VE2-800 In stock	Pinion Gear Collar	£2.08 £1.73
22	HP92101-050120A Out of stock	Bolt	£0.58 £0.48
23	HP94101-05800 Out of stock	Plain Washer 5Mm	£1.09 £0.91
24	HP94511-22000 Out of stock	External Circlip 22Mm	£2.34 £1.95
25	HP44327-VE2-801 In stock	Drive Shaft Bush	£8.35 £6.96
