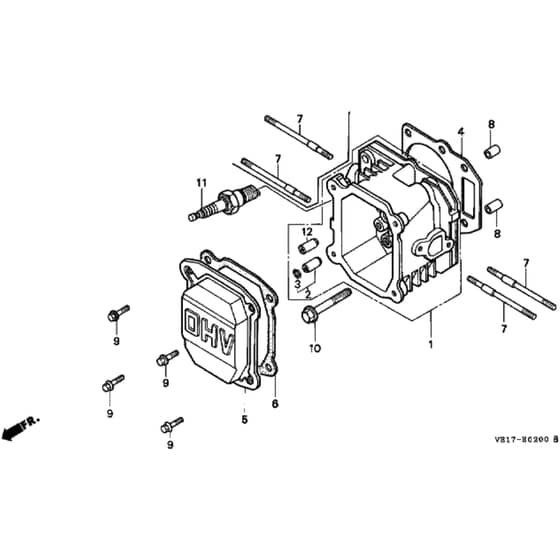

Honda HRB535K2 - HXE - MZBA 6200001-6299999 Cylinder Head Diagram

Honda HRB535K2 - HXE - MZBA 6200001-6299999 Cylinder Head Diagram
Honda HRB535K2 - HXE - MZBA 6200001-6299999 Cylinder Head Diagram

Description

Honda HRB535K2 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Cylinder Head Assy
Cylinder Head Assy
HP12200-ZG9-P41 Out of stock
Cylinder Head Assy
£204.36 £170.30

  2 Exhaust Valve Guide
Exhaust Valve Guide
HP12205-ZE1-315 Out of stock
Exhaust Valve Guide
£13.37 £11.14

  3 Valve Guide Clip
Valve Guide Clip
HP12216-ZE5-300 Out of stock
Valve Guide Clip
£3.91 £3.26

  4 Cylinder Head Gasket
Cylinder Head Gasket
HP12251-ZG9-000 Out of stock
Cylinder Head Gasket
£11.93 £9.94

  5 Rocker Cover
Rocker Cover
HP12311-ZG9-800 Out of stock
Rocker Cover
£23.63 £19.69

  6 Rocker Cover Gasket
Rocker Cover Gasket
HP12391-ZG9-800 Out of stock
Rocker Cover Gasket
£13.32 £11.10

  7 Stud 6 X 83
Stud 6 X 83
HP90013-ZG9-T00 Out of stock
Stud 6 X 83
£5.39 £4.49

  8 Dowel Pin 10 X 16
Dowel Pin 10 X 16
HP94301-10160 Out of stock
Dowel Pin 10 X 16
£3.73 £3.11

  9 Bolt (eng no. 7006467)
Bolt (eng no. 7006467)
HP957001-061600 Out of stock
Bolt (eng no. 7006467)
£1.08 £0.90

  9 Bolt (up to eng no. 7006466)
Bolt (up to eng no. 7006466)
HP95701-0601400 Out of stock
Bolt (up to eng no. 7006466)
£1.50 £1.25

  10 Bolt
Bolt
HP95701-0805000 Out of stock
Bolt
£2.30 £1.92

  11 Spark Plug
Spark Plug
2135 In stock
Spark Plug
£3.54 £2.95

  11 Spark Plug
Spark Plug
7230 In stock
Spark Plug
£4.40 £3.67

  11 Spark Plug
Spark Plug
2136 In stock
Spark Plug
£2.92 £2.43

  12 Inlet Valve Guide
Inlet Valve Guide
HP12204-ZE1-306 Out of stock
Inlet Valve Guide
£11.86 £9.88


Description

Honda HRB535K2 - HXE Rotary Mower Parts Diagram
