Honda HRB535 - SXS - MZBA 6000001-6099999 Handle Pipe Diagram

Description

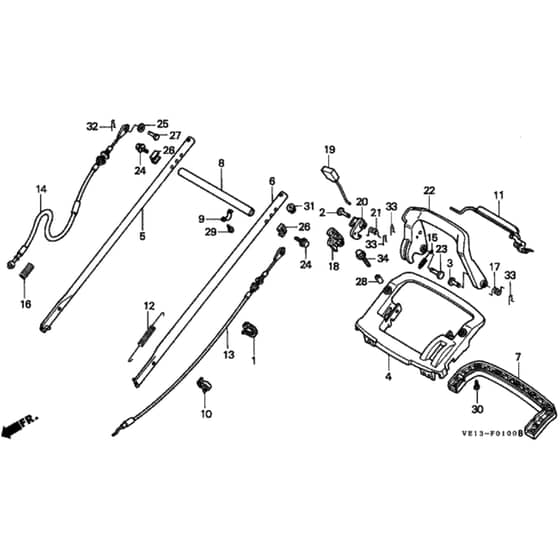

Honda HRB535 - SXS Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP32901-VB5-800 Out of stock	Cable Tie	£5.80 £4.83
2	HP50603-KB4-000 Out of stock	Pin	£7.86 £6.55
3	HP50603-MC4-000 Out of stock	Pin	£7.64 £6.37
4	HP53110-VE0-000 Out of stock	Upper Handle	£157.12 £130.93
7	HP53165-VE0-000 Out of stock	Handle Grip	£44.68 £37.23
8	HP53168-VE0-000ZA Out of stock	Connecting Pipe	£115.44 £96.20
9	HP53169-VE0-000 Out of stock	Handle Connecting Plate	£4.94 £4.12
10	HP53735-SE0-961 Out of stock	Clip	£7.88 £6.57
11	HP54410-VE0-801 Out of stock	Clutch Lever Assy	£80.28 £66.90
12	HP54411-VE2-800 Out of stock	Clutch Lever Spring	£6.72 £5.60
12	HP54411-VE2-M00 Out of stock	Clutch Lever Spring	£4.14 £3.45
13	HP54510-VE2-305 Out of stock	Clutch Cable	£29.86 £24.88
14	HP54530-VE0-003 Out of stock	Roto-Stop Cable	£27.26 £22.72
17	HP75118-VE0-000 Out of stock	Stop Return Spring R H	£4.54 £3.78
18	HP75128-VE0-000 In stock	Cable Arm	£13.26 £11.05
19	HP75165-VE0-000 Out of stock	Ratchet Push Rod	£9.48 £7.90
20	HP75166-VE0-000 Out of stock	Lock Lever	£4.03 £3.36
21	HP75168-VE0-000 Out of stock	Pawl Spring	£1.14 £0.95
22	HP75191-VE0-000 Out of stock	Roto-Stop Lever	£58.81 £49.01
23	HP77226-750-003 Out of stock	Pin	£6.26 £5.22
24	HP90101-VE0-000 Out of stock	Handle Bolt	£2.88 £2.40
26	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
27	HP90754-VA3-J00 Out of stock	Cable Joint Pin	£4.20 £3.50
28	HP91553-VE0-000 Out of stock	Handle Collar	£3.32 £2.77
29	HP93911-24120 Out of stock	Tapping Screw	£1.80 £1.50
30	HP93913-24320 Out of stock	Tapping Screw	£1.80 £1.50
31	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
32	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
33	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
34	HP95701-0804500 Out of stock	Flange Bolt 8 X 45	£2.62 £2.18
