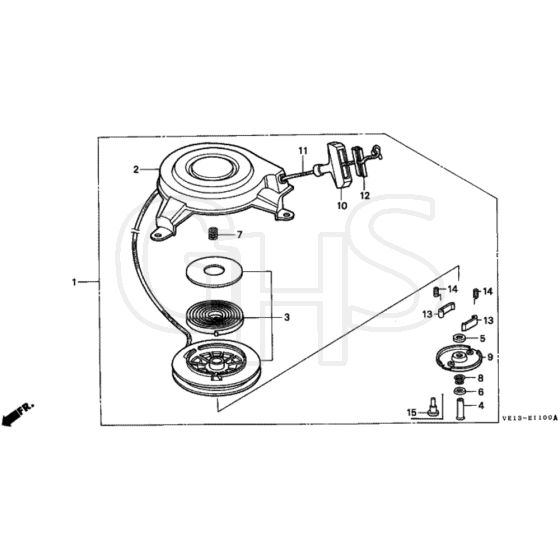

Honda HRB535 - SXG - MZBA 6000001-6099999 Recoil Starter Diagram

Description

Honda HRB535 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP28400-ZG9-M00	Recoil Assy	Out of stock	£93.72 £78.10
2	HP28402-ZG9-M00	Housing Assy	Out of stock	£46.94 £39.12
3	HP28415-ZE6-T02	Pulley & Spring Assy	Out of stock	£55.44 £46.20
7	HP28441-ZE6-T02	Brake Spring	Out of stock	£2.65 £2.21
9	HP28444-ZE6-T02	Retainer	Out of stock	£12.01 £10.01
10	HP28461-ZE6-T02	Recoil Handle	Out of stock	£16.24 £13.53
11	HP28462-ZE6-T02	Recoil Rope	Out of stock	£11.72 £9.77
12	HP28463-ZE6-T02	Handle	Out of stock	£12.52 £10.43
13	HP28485-ZE6-T02	Dog	Out of stock	£7.55 £6.29
14	HP28486-ZE6-T02	Dog Spring	Out of stock	£4.03 £3.36
15	HP28488-ZE6-T02	Centre Screw	Out of stock	£7.57 £6.31

Honda HRB535 - SXG Rotary Mower Parts Diagram
