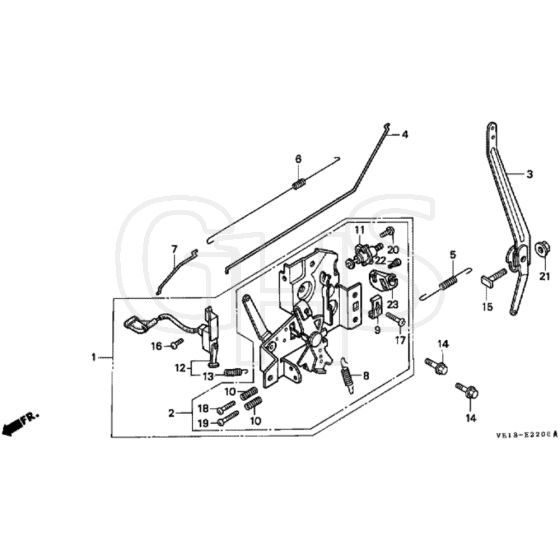

Honda HRB535 - SXG Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Control HP16500-ZG9-M01
Control
Out of stock
£127.70 £106.42

  1 Control Assy HP04102-ZG9-M10
Control Assy
Out of stock
£424.80 £354.00

  4 Governor Rod HP16555-ZE6-000
Governor Rod
Out of stock
£6.23 £5.19

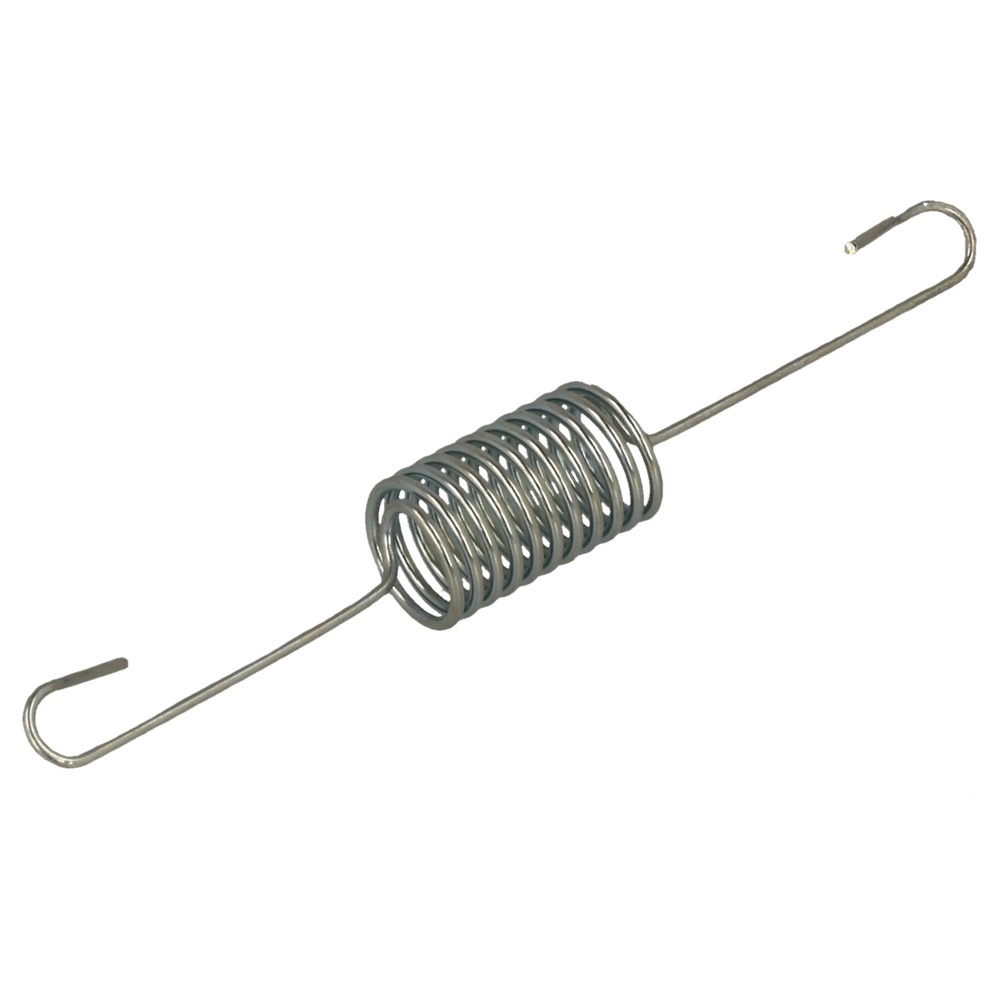

  5 Governor Spring HP16561-ZE6-010
Governor Spring
Out of stock
£4.42 £3.68

  6 Throttle Return Spring HP16562-ZE6-000
Throttle Return Spring
In stock
Was £6.80 £5.67 Special Price £4.74 £3.95

  7 Choke Rod HP16573-ZE6-010
Choke Rod
Out of stock
£3.66 £3.05

  8 Lever Spring HP16574-ZG9-M00
Lever Spring
Out of stock
£3.16 £2.63

  9 Cable Holder HP16576-891-000
Cable Holder
Out of stock
£4.16 £3.47

  10 Control Adjusting Spring HP16584-883-300
Control Adjusting Spring
Out of stock
£5.14 £4.28

  11 Fuel Tap Assy 1271
Fuel Tap Assy
In stock
£5.06 £4.22

  11 Fuel Tap Assy HP16950-ZG9-M00
Fuel Tap Assy
Out of stock
£42.88 £35.73

  12 Engine Stop Switch Assy HP36100-ZE6-003
Engine Stop Switch Assy
Out of stock
£32.94 £27.45

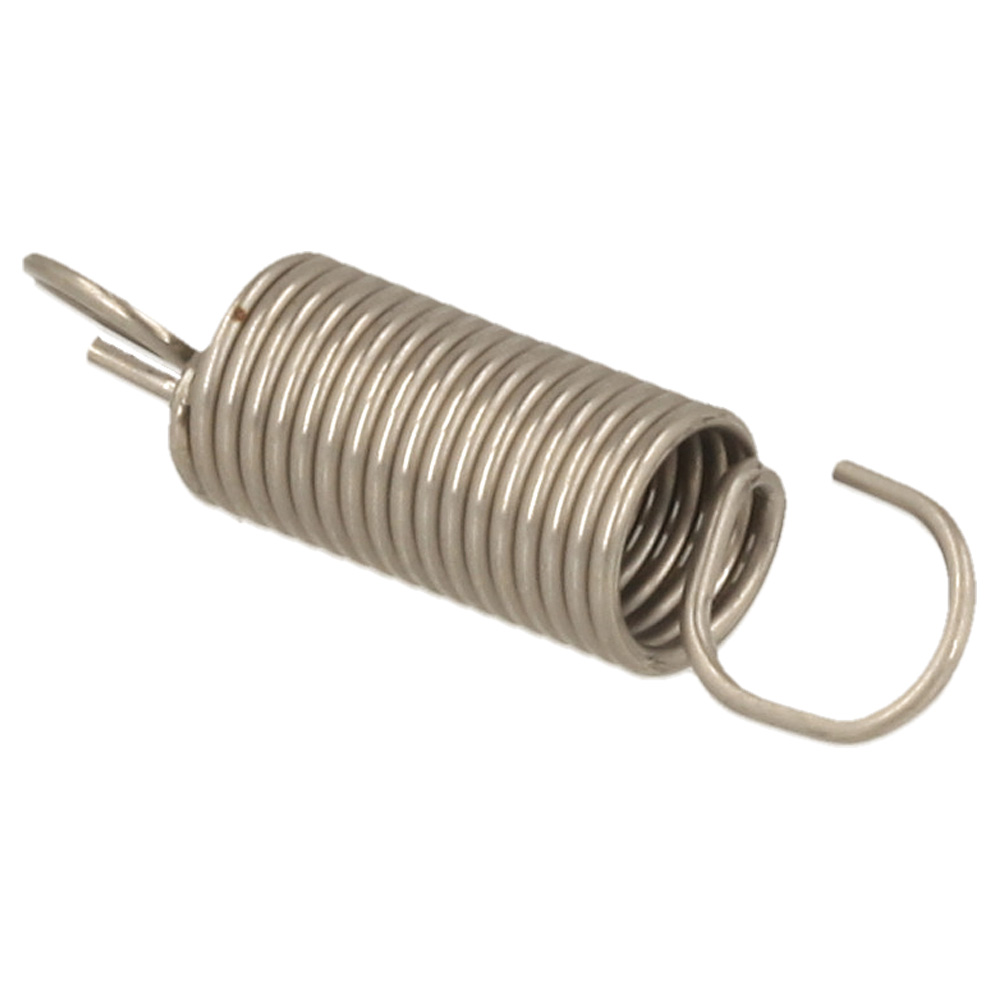

  13 Switch Control Spring HP36120-ZE6-010
Switch Control Spring
Out of stock
£2.81 £2.34

  14 Flange Bolt 6 X 14 HP90014-952-000
Flange Bolt 6 X 14
Out of stock
£4.26 £3.55

  15 Governor Arm Bolt HP90015-ZE5-010
Governor Arm Bolt
Out of stock
£3.56 £2.97

  16 Screw HP93500-040080A
Screw
Out of stock
£1.69 £1.41

  17 Screw Pan 5X16 HP93500-050160A
Screw Pan 5X16
Out of stock
£1.61 £1.34

  18 Screw Pan 5X20 HP93500-050200A
Screw Pan 5X20
Out of stock
£1.61 £1.34

  19 Screw HP93500-05025-0A
Screw
Out of stock
£1.80 £1.50

  20 Screw HP93892-05012-00
Screw
Out of stock
£0.54 £0.45

  21 Flange Nut 6Mm HP94050-06000
Flange Nut 6Mm
In stock
£4.01 £3.34

  22 Shoulder Bolt HP90006-ZG9-M00
Shoulder Bolt
Out of stock
£1.82 £1.52

  23 Fuel Tap Bracket HP16956-ZM0-000
Fuel Tap Bracket
Out of stock
£3.53 £2.94
