Honda HRB476C1 - SXEE - MZCD 1000001-9999999 Handle Pipe Diagram

Description

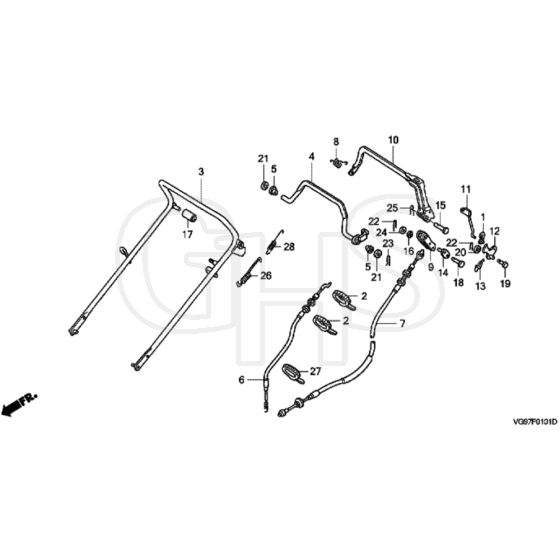

Honda HRB476C1 - SXEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Out of stock	Rod Joint	£8.52 £7.10
2	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
3	HP53110-VE0-L00ZA Out of stock	Upper Handle	£187.44 £156.20
4	HP54410-VA9-H50 Out of stock	Clutch Lever Assy	£78.72 £65.60
5	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
6	HP54510-VA9-H51 In stock	Clutch Cable	£26.64 £22.20
7	HP54530-VE0-M01 In stock	Roto-Stop Cable	£26.36 £21.97
8	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
9	HP75128-VE0-L00 Out of stock	Cable Arm	£14.41 £12.01
10	HP75161-VE0-L01 Out of stock	Roto-Stop Lever Assy	£58.56 £48.80
11	HP75165-VE0-L00 Out of stock	Ratchet Push Rod	£9.96 £8.30
12	HP75166-VE0-L00 Out of stock	Lock Lever	£7.10 £5.92
13	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
15	HP90106-VA4-800 Out of stock	Clutch Lever Pin	£9.95 £8.29
17	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
18	HP90754-VA9-P40 Out of stock	Cable Joint Pin	£3.08 £2.57
19	HP90753-VA3-J00 Out of stock	Lever Hinge Lock Pin	£4.13 £3.44
20	HP90407-952-300 Out of stock	Special Washer 6mm	£4.10 £3.42
21	HP94101-08000 Out of stock	Plain Washer 8mm	£1.09 £0.91
22	HP94251-06000 Out of stock	Lock Pin 6mm	£1.45 £1.21
23	HP94251-08000 Out of stock	Lock Pin 8mm	£1.75 £1.46
