Honda HRB476C1 - PXE - MZCD 8100001-8123431 Handle Pipe Diagram

Honda HRB476C1 - PXE - MZCD 8100001-8123431 Handle Pipe Diagram
Honda HRB476C1 - PXE - MZCD 8100001-8123431 Handle Pipe Diagram

Description

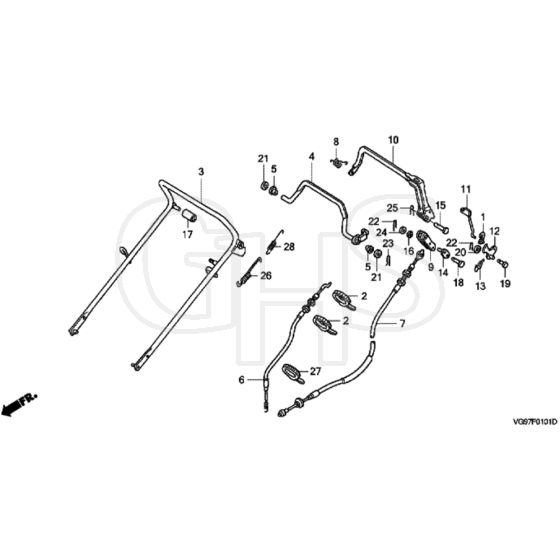

Honda HRB476C1 - PXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  2 Cable Tie
Cable Tie
HP32901-VE0-850 Out of stock
Cable Tie
£6.30 £5.25

  3 Upper Handle
Upper Handle
HP53110-VE0-L00ZA Out of stock
Upper Handle
£187.44 £156.20

  5 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  7 Roto-Stop Cable
Roto-Stop Cable
HP54530-VE0-M01 In stock
Roto-Stop Cable
£26.36 £21.97

  8 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  9 Cable Arm
Cable Arm
HP75128-VE0-L00 Out of stock
Cable Arm
£14.41 £12.01

  10 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VE0-L01 Out of stock
Roto-Stop Lever Assy
£58.56 £48.80

  11 Ratchet Push Rod
Ratchet Push Rod
HP75165-VE0-L00 Out of stock
Ratchet Push Rod
£9.96 £8.30

  12 Lock Lever
Lock Lever
HP75166-VE0-L00 Out of stock
Lock Lever
£7.10 £5.92

  13 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  15 Pin
Pin
HP90106-VA4-000 Out of stock
Pin
£10.06 £8.38

  17 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  18 Cable Joint Pin
Cable Joint Pin
HP90754-VA9-P40 Out of stock
Cable Joint Pin
£3.08 £2.57

  19 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 In stock
Lever Hinge Lock Pin
£4.80 £4.00

  21 Plain Washer 8Mm
Plain Washer 8Mm
HP94101-08000 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  22 Lock Pin 6mm
Lock Pin 6mm
HP94251-06000 Out of stock
Lock Pin 6mm
£1.45 £1.21

  23 Lock Pin 8mm
Lock Pin 8mm
HP94251-08000 Out of stock
Lock Pin 8mm
£1.75 £1.46


Description

Honda HRB476C1 - PXE Rotary Mower Parts Diagram
