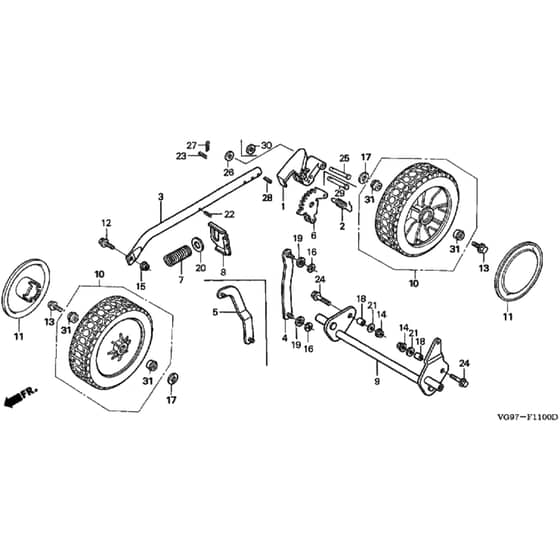

Honda HRB476C1 - HXE - MZCD 8100001-8123431 Front Wheel Diagram

Description

Honda HRB476C1 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42961-VE0-000 Out of stock	Height Adjuster Lever	£21.72 £18.10
2	HP42962-VE0-000 Out of stock	Return Spring	£3.66 £3.05
3	HP42963-VE0-000 Out of stock	Adjuster Arm	£19.08 £15.90
5	HP42964-VE0-000 Out of stock	Adjuster Arm	£19.04 £15.87
6	HP42991-VE0-000 Out of stock	Height Panel	£23.40 £19.50
7	HP42992-VE0-000 Out of stock	Balancer Spring	£30.37 £25.31
8	HP42993-VE0-000 Out of stock	Seat Spring	£3.40 £2.83
9	HP44310-VE0-000 Out of stock	Front Axle Shaft	£146.64 £122.20
10	HP44710-VE0-751ZB Out of stock	Front Wheel	£43.66 £36.38
11	HP44719-VE0-751ZA In stock	Hub Cap	£3.88 £3.23
13	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
14	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
15	HP90301-473-003 Out of stock	Nut	£6.30 £5.25
16	HP90407-VA9-K40 In stock	Special Washer 8mm	£1.56 £1.30
17	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
18	HP91905-VA9-000 Out of stock	Adjusting Collar	£4.13 £3.44
19	HP94101-08000 Out of stock	Plain Washer 8mm	£1.09 £0.91
20	HP94101-16000 Out of stock	Washer	£1.04 £0.87
21	HP94103-08000 Out of stock	Plain Washer 8mm	£0.48 £0.40
22	HP94305-40282 Out of stock	Spring Pin 4 X 28	£2.52 £2.10
23	HP94305-60302 Out of stock	Spring Pin 6 X 30	£2.52 £2.10
24	HP95801-0805000 Out of stock	Flange Bolt 8 X 50	£2.60 £2.17
31	HP91051-VE0-750 In stock	Bearing	£11.40 £9.50
