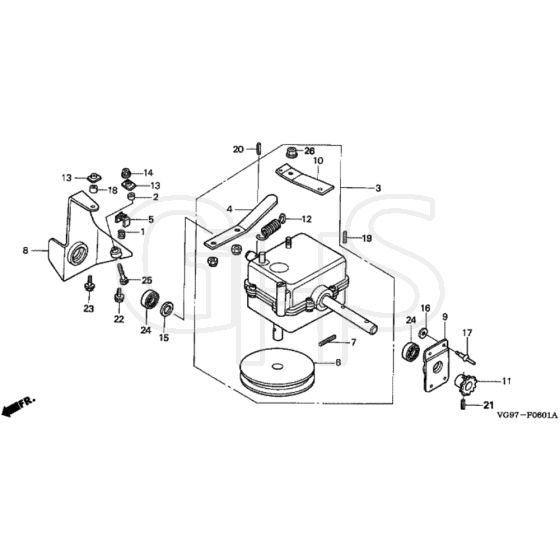

Honda HRB476C - QXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  2 Fan Cover Collar
Fan Cover Collar
HP19612-896-750 Out of stock
Fan Cover Collar
£2.36 £1.97

  3 Transmission Assy
Transmission Assy
HP20001-VE0-M11 Out of stock
Transmission Assy
£223.12 £185.93

  4 Transmission Stopper
Transmission Stopper
HP21284-VE0-M11 Out of stock
Transmission Stopper
£16.67 £13.89

  5 Spring Holder
Spring Holder
HP21557-VA9-F60 Out of stock
Spring Holder
£8.90 £7.42

  6 Pulley
Pulley
HP22422-VE0-M11 Out of stock
Pulley
£69.24 £57.70

  7 Spring Pin
Spring Pin
HP22428-VA9-F60 Out of stock
Spring Pin
£0.77 £0.64

  8 Transmission Guide
Transmission Guide
HP22511-VE0-M10 Out of stock
Transmission Guide
£43.44 £36.20

  9 Guide
Guide
HP22513-VE0-M10 Out of stock
Guide
£42.12 £35.10

  10 Clutch Arm
Clutch Arm
HP22811-VE0-M11 Out of stock
Clutch Arm
£25.16 £20.97

  11 Drive Sprocket
Drive Sprocket
HP23121-VA9-F60 In stock
Drive Sprocket
£40.56 £33.80

  12 Clutch Arm Return Spring
Clutch Arm Return Spring
HP23439-VE0-851 Out of stock
Clutch Arm Return Spring
£3.95 £3.29

  13 Nut
Nut
HP61304-958-003 Out of stock
Nut
£6.37 £5.31

  14 Lock Nut
Lock Nut
HP90308-SA0-981 Out of stock
Lock Nut
£5.04 £4.20

  15 Washer
Washer
HP90459-107-000 In stock
Washer
£2.51 £2.09

  16 Washer
Washer
HP90483-178-000 Out of stock
Washer
£3.43 £2.86

  17 Rivet 4.8 X 17.2
Rivet 4.8 X 17.2
HP90852-VA9-K41 Out of stock
Rivet 4.8 X 17.2
£1.43 £1.19

  18 Collar
Collar
HP91554-VE0-C50 Out of stock
Collar
£2.47 £2.06

  19 Spring Pin 3 X 18
Spring Pin 3 X 18
HP94305-30182 In stock
Spring Pin 3 X 18
£1.82 £1.52

  20 Spring Pin 4 X 18
Spring Pin 4 X 18
HP94305-40182 Out of stock
Spring Pin 4 X 18
£2.47 £2.06

  21 Spring Pin 5 X 22
Spring Pin 5 X 22
HP94305-50221 In stock
Spring Pin 5 X 22
£2.75 £2.29

  22 Flange Bolt
Flange Bolt
HP95701-060-1800 Out of stock
Flange Bolt
£1.58 £1.32

  23 Flange Bolt
Flange Bolt
HP95701-060-2000 Out of stock
Flange Bolt
£1.58 £1.32

  24 Bearing
Bearing
HP96150-6001010 Out of stock
Bearing
£6.24 £5.20

  25 Bolt
Bolt
HP96600-0604000 Out of stock
Bolt
£0.48 £0.40

  26 Lock Nut 5mm
Lock Nut 5mm
HP90301-VE0-L01 Out of stock
Lock Nut 5mm
£5.76 £4.80
