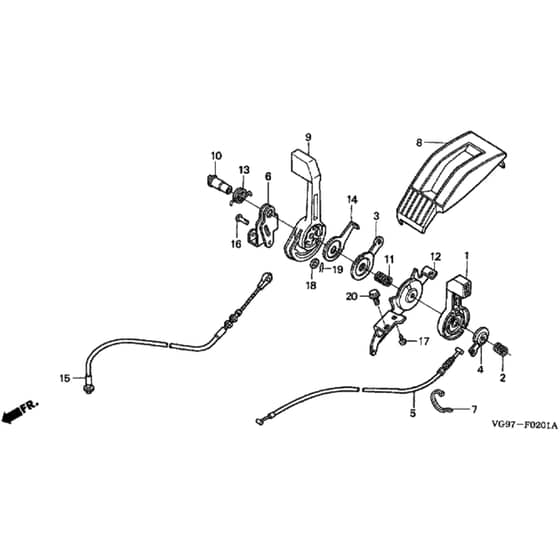

Honda HRB476C - HXE - MZCD 8000001-8099001 Throttle Lever Diagram

Honda HRB476C - HXE - MZCD 8000001-8099001 Throttle Lever Diagram
Honda HRB476C - HXE - MZCD 8000001-8099001 Throttle Lever Diagram

Description

Honda HRB476C - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Throttle Lever
Throttle Lever
HP17851-VA3-D01 In stock
Throttle Lever
£15.01 £12.51

  2 Throttle Lever Spring
Throttle Lever Spring
HP17858-VA4-000 In stock
Throttle Lever Spring
£4.76 £3.97

  3 Seat Spring
Seat Spring
HP17859-VA3-P00 Out of stock
Seat Spring
£6.77 £5.64

  4 Seat Spring
Seat Spring
HP17859-VA3-800 Out of stock
Seat Spring
£7.62 £6.35

  5 Throttle Cable
Throttle Cable
HP17910-VE0-D50 Out of stock
Throttle Cable
£36.00 £30.00

  6 Change Arm Lever
Change Arm Lever
HP24412-VE0-J50 Out of stock
Change Arm Lever
£19.49 £16.24

  7 Cable Tie
Cable Tie
HP32901-952-770 Out of stock
Cable Tie
£2.36 £1.97

  8 Control Cover
Control Cover
HP54231-VA3-800 Out of stock
Control Cover
£43.74 £36.45

  9 Change Lever
Change Lever
HP54311-VE0-J50 Out of stock
Change Lever
£20.03 £16.69

  10 Change Lever Nut
Change Lever Nut
HP54313-VA3-P00 Out of stock
Change Lever Nut
£9.46 £7.88

  11 Change Lever Spring
Change Lever Spring
HP54314-VA3-P00 Out of stock
Change Lever Spring
£3.24 £2.70

  12 Stopper Plate
Stopper Plate
HP54315-VA3-P40 Out of stock
Stopper Plate
£39.60 £33.00

  13 Arm Return Spring
Arm Return Spring
HP54318-VA3-P00 Out of stock
Arm Return Spring
£4.03 £3.36

  14 Thrust Plate
Thrust Plate
HP54319-VA3-P00 Out of stock
Thrust Plate
£16.97 £14.14

  15 Speed Change Cable
Speed Change Cable
HP54630-VE0-L41 Out of stock
Speed Change Cable
£27.74 £23.12

  16 Pin 6 X 22
Pin 6 X 22
HP90752-VA3-P01 Out of stock
Pin 6 X 22
£3.72 £3.10

  17 Tapping Screw
Tapping Screw
HP93901-35210 Out of stock
Tapping Screw
£1.80 £1.50

  18 Plain Washer 6mm
Plain Washer 6mm
HP94101-06000 Out of stock
Plain Washer 6mm
£1.40 £1.17

  19 Lock Pin 6mm
Lock Pin 6mm
HP94251-06000 Out of stock
Lock Pin 6mm
£1.45 £1.21

  20 Bolt
Bolt
HP95701-0601000 Out of stock
Bolt
£1.69 £1.41


Description

Honda HRB476C - HXE Rotary Mower Parts Diagram
