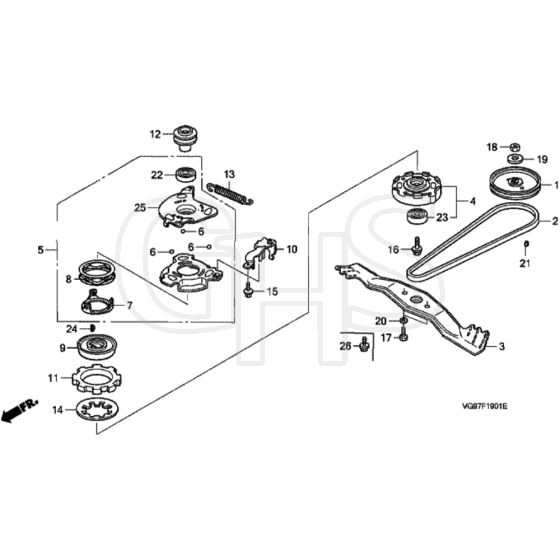

Honda HRB476C - HXE/A - MZCD 8500001-8510560 Pulley/Rotary Blade Diagram

Name: Honda HRB476C - HXE/A - MZCD 8500001-8510560 Pulley/Rotary Blade Diagram
SKU: hrb476c_hxe_a_mzcd_8500001_8510560_pulley_rotary_blade_2_-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB476C - HXE/A - MZCD 8500001-8510560 Pulley/Rotary Blade Diagram

Description

Honda HRB476C - HXE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE0-J50 Out of stock	Pulley	£69.24 £57.70
2	HP22431-VE0-800 Out of stock	Belt	£29.60 £24.67
3	HP72511-VE0-N00 In stock	Blade	£45.74 £38.12
4	HP72600-VE1-G00 Out of stock	Blade Holder Assy	£75.24 £62.70
5	HP75110-VE1-R00 Out of stock	Ball Control Plate	£84.90 £70.75
6	HP75117-VE1-G00 Out of stock	Bearing	£3.96 £3.30
7	HP75127-VE1-G00 Out of stock	Spring Hook Plate	£16.34 £13.62
8	HP75132-VE1-G00 Out of stock	Spring	£12.00 £10.00
9	HP75141-VE1-G00 Out of stock	Drive Disk	£34.98 £29.15
10	HP75143-VE1-G00 Out of stock	Return Spring Hook	£7.58 £6.32
11	HP75150-VE1-G02 Out of stock	Driven Disk Assy	£75.32 £62.77
12	HP75162-VE0-M00 Out of stock	Pulley	£69.24 £57.70
13	HP75185-VE1-G00 Out of stock	Clutch Return Spring	£10.18 £8.48
14	HP75183-VE1-G01 In stock	Clutch Spring	£11.16 £9.30
15	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
16	HP90101-VE1-G00 Out of stock	Flange Bolt 10 X 24	£2.99 £2.49
17	HP90105-960-710 Out of stock	Blade Bolt	£2.65 £2.21
18	HP90304-GA6-003 Out of stock	Nut	£4.92 £4.10
20	HP90481-430-000 In stock	Washer	£4.42 £3.68
22	HP91051-VE1-G00 Out of stock	Bearing	£27.08 £22.57
23	HP91102-VA4-013 In stock	Bearing	£29.38 £24.48
24	HP94401-16150 In stock	Woodruff Key	£0.68 £0.57
25	HP75111-VE1-G01 Out of stock	Control Plate	£19.44 £16.20
