Honda HRB475K3 - QME - MZAZ 8300001-9999999 Control Diagram

Name: Honda HRB475K3 - QME - MZAZ 8300001-9999999 Control Diagram
SKU: hrb475k3_qme_mzaz_8300001_9999999_control-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

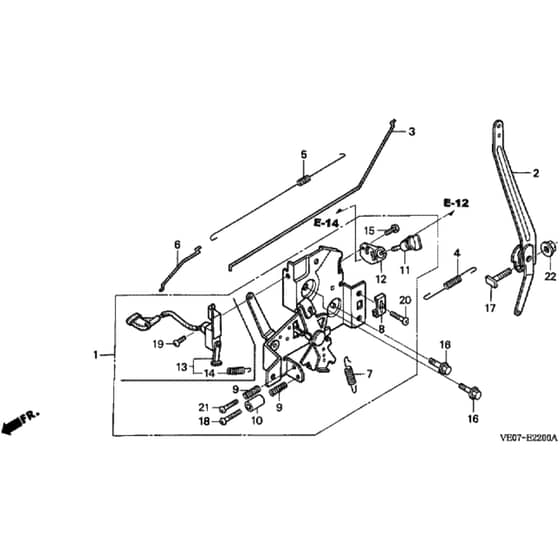

Honda HRB475K3 - QME - MZAZ 8300001-9999999 Control Diagram

Description

Honda HRB475K3 - QME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16500-ZG9-P71 Out of stock	Control Assy	£94.92 £79.10
3	HP16555-ZE6-000 Out of stock	Governor Rod	£6.23 £5.19
4	HP16561-ZE6-010 Out of stock	Governor Spring	£4.42 £3.68
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£6.80 £5.67
6	HP16573-ZE6-010 Out of stock	Choke Rod	£3.66 £3.05
7	HP16574-ZG9-M00 Out of stock	Lever Spring	£3.16 £2.63
8	HP16576-891-000 Out of stock	Cable Holder	£4.16 £3.47
9	HP16584-883-300 Out of stock	Control Adjusting Spring	£5.14 £4.28
10	HP16599-ZG1-M10 Out of stock	Stopper Collar	£3.11 £2.59
11	1271 In stock	Fuel Tap Assy	£5.06 £4.22
12	HP16956-ZM0-000 Out of stock	Fuel Tap Bracket	£3.53 £2.94
15	HP90006-ZG9-M00 Out of stock	Shoulder Bolt	£1.82 £1.52
16	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
17	HP90015-ZE5-010 Out of stock	Governor Arm Bolt	£3.56 £2.97
18	HP90016-ZG9-N30 Out of stock	Recessed Screw 5 X 25	£2.32 £1.93
20	HP93500-050160A Out of stock	Screw Pan 5X16	£1.55 £1.29
21	HP93500-050200A Out of stock	Screw Pan 5X20	£1.55 £1.29
22	HP94050-06000 In stock	Flange Nut 6Mm	£4.01 £3.34
