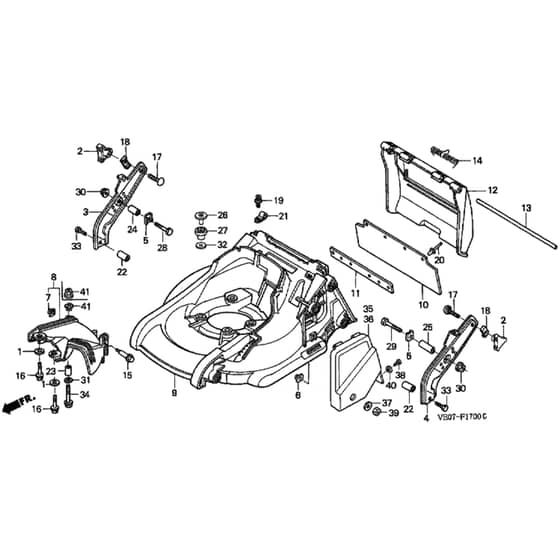

Honda HRB475K2 - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Crankcase Assy
Crankcase Assy
HP11300-ZG9-407 Out of stock
Crankcase Assy
£204.12 £170.10

  2 Crankcase Gasket
Crankcase Gasket
HP11381-ZG9-T00 Out of stock
Crankcase Gasket
£8.24 £6.87

  3 Cylinder Assy
Cylinder Assy
HP12100-ZG9-415 Out of stock
Cylinder Assy
£349.22 £291.02

  4 Guide Plate
Guide Plate
HP12125-ZG9-000 Out of stock
Guide Plate
£13.20 £11.00

  5 Breather Cap
Breather Cap
HP12360-ZE6-000 Out of stock
Breather Cap
£20.88 £17.40

  6 Breather Filter
Breather Filter
HP12367-ZE6-010 Out of stock
Breather Filter
£6.73 £5.61

  7 Breather Valve
Breather Valve
HP12372-879-000 Out of stock
Breather Valve
£1.72 £1.43

  8 Breather Gasket
Breather Gasket
HP12373-ZE6-000 Out of stock
Breather Gasket
£2.06 £1.72

  9 Oil Defence Pipe
Oil Defence Pipe
HP12385-ZE6-000 Out of stock
Oil Defence Pipe
£8.60 £7.17

  10 Oil Level Gauge Assy
Oil Level Gauge Assy
HP15620-ZE6-810 Out of stock
Oil Level Gauge Assy
£19.27 £16.06

  11 Dipstick Tube
Dipstick Tube
HP15630-ZE6-810 Out of stock
Dipstick Tube
£29.75 £24.79

  12 Governor Assy
Governor Assy
HP16510-ZE6-000 In stock
Governor Assy
£28.07 £23.39

  13 Governor Weight
Governor Weight
HP16511-ZE1-000 Out of stock
Governor Weight
£4.42 £3.68

  14 Governor Weight Holder
Governor Weight Holder
HP16512-ZE6-000 Out of stock
Governor Weight Holder
£17.52 £14.60

  15 Governor Weight Pin
Governor Weight Pin
HP16513-ZE1-000 Out of stock
Governor Weight Pin
£2.32 £1.93

  16 Governor Holder Shaft
Governor Holder Shaft
HP16515-ZE6-010 Out of stock
Governor Holder Shaft
£8.48 £7.07

  17 Governor Shaft Holder Plate
Governor Shaft Holder Plate
HP16525-ZE6-010 Out of stock
Governor Shaft Holder Plate
£8.48 £7.07

  18 Governor Slider
Governor Slider
HP16531-ZE1-000 Out of stock
Governor Slider
£4.96 £4.13

  19 Governor Arm Shaft
Governor Arm Shaft
HP16541-ZE7-000 Out of stock
Governor Arm Shaft
£11.75 £9.79

  20 Collar
Collar
HP17240-ZE6-000 Out of stock
Collar
£7.64 £6.37

  21 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  22 Flange Bolt
Flange Bolt
HP90017-883-000 Out of stock
Flange Bolt
£4.70 £3.92

  23 Drain Plug
Drain Plug
HP90131-ZE1-000 Out of stock
Drain Plug
£2.82 £2.35

  24 Thrust Washer 6Mm
Thrust Washer 6Mm
HP90451-ZE1-000 Out of stock
Thrust Washer 6Mm
£2.16 £1.80

  25 Drain Plug Washer 10.2mm
Drain Plug Washer 10.2mm
HP90601-ZE1-000 Out of stock
Drain Plug Washer 10.2mm
£1.18 £0.98

  26 Governor Holder Clip
Governor Holder Clip
HP90602-ZE1-000 Out of stock
Governor Holder Clip
£3.91 £3.26

  27 Oil Seal
Oil Seal
HP91202-ZE6-003 In stock
Oil Seal
£10.62 £8.85

  28 Oil Seal
Oil Seal
HP91231-891-003 In stock
Oil Seal
£2.48 £2.07

  29 Oil Seal 25 X 38 X 7
Oil Seal 25 X 38 X 7
HP91252-888-003 Out of stock
Oil Seal 25 X 38 X 7
£14.50 £12.08

  30 O Ring 22.1 X 2.2
O Ring 22.1 X 2.2
HP91301-ZE9-003 Out of stock
O Ring 22.1 X 2.2
£2.00 £1.67

  31 O Ring 26 X 2.7
O Ring 26 X 2.7
HP91301-805-000 Out of stock
O Ring 26 X 2.7
£3.85 £3.21

  33 Plain Washer 6mm
Plain Washer 6mm
HP94101-06800 Out of stock
Plain Washer 6mm
£1.09 £0.91

  34 Lock Pin 8mm
Lock Pin 8mm
HP94251-08000 Out of stock
Lock Pin 8mm
£1.75 £1.46

  35 Dowel Pin 8 X 14
Dowel Pin 8 X 14
HP94301-08140 Out of stock
Dowel Pin 8 X 14
£3.20 £2.67

  36 Flange Bolt 6 X 12
Flange Bolt 6 X 12
HP95701-0601208 Out of stock
Flange Bolt 6 X 12
£1.50 £1.25

  37 Bolt
Bolt
HP95701-06020-00 Out of stock
Bolt
£1.58 £1.32

  38 Flange Bolt 6 X 28
Flange Bolt 6 X 28
HP95701-0602800 Out of stock
Flange Bolt 6 X 28
£1.75 £1.46
