Description

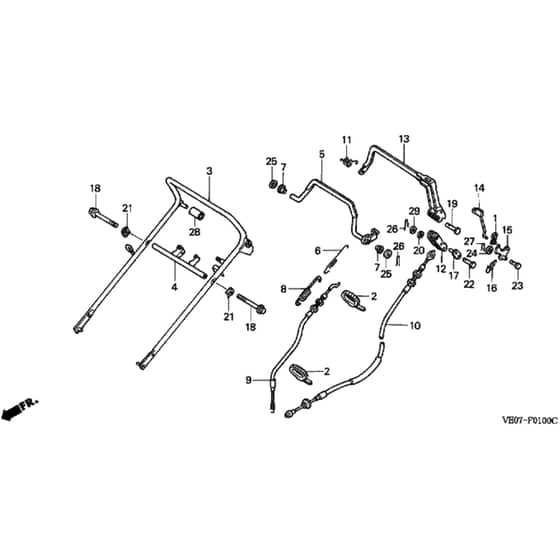

Honda HRB475K2 - SME Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Rod Joint
Rod Joint
HP16956-892-000 Out of stock
Rod Joint
£8.52 £7.10

  2 Cable Tie
Cable Tie
HP32901-VE0-850 Out of stock
Cable Tie
£6.30 £5.25

  3 Upper Handle
Upper Handle
HP53110-VE0-L50ZA Out of stock
Upper Handle
£170.88 £142.40

  4 Handle Connector
Handle Connector
HP53168-VE0-L50ZA Out of stock
Handle Connector
£15.38 £12.82

  5 Clutch Lever Assy
Clutch Lever Assy
HP54410-VA9-H50 Out of stock
Clutch Lever Assy
£78.72 £65.60

  6 Clutch Spring
Clutch Spring
HP54411-VA3-P00 In stock
Clutch Spring
£8.40 £7.00

  7 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  8 Clutch Lever Return Spring
Clutch Lever Return Spring
HP54414-VA3-P00 In stock
Clutch Lever Return Spring
£6.12 £5.10

  9 Clutch Cable
Clutch Cable
HP54510-VA9-H51 In stock
Clutch Cable
£26.64 £22.20

  10 Roto-Stop Cable (up to ser no. 8239640)
Roto-Stop Cable (up to ser no. 8239640)
HP54530-VE0-L01 In stock
Roto-Stop Cable (up to ser no. 8239640)
£29.34 £24.45

  10 Roto-Stop Cable (ser no. 8239641 +)
Roto-Stop Cable (ser no. 8239641 +)
HP54530-VE0-M01 In stock
Roto-Stop Cable (ser no. 8239641 +)
£26.36 £21.97

  11 Stop Return Spring R H
Stop Return Spring R H
HP75118-VA3-J00 In stock
Stop Return Spring R H
£7.56 £6.30

  12 Cable Arm
Cable Arm
HP75128-VE0-L00 Out of stock
Cable Arm
£14.41 £12.01

  13 Roto-Stop Lever Assy
Roto-Stop Lever Assy
HP75161-VE0-L01 Out of stock
Roto-Stop Lever Assy
£58.56 £48.80

  14 Ratchet Push Rod
Ratchet Push Rod
HP75165-VE0-L00 Out of stock
Ratchet Push Rod
£9.96 £8.30

  15 Lock Lever
Lock Lever
HP75166-VE0-L00 Out of stock
Lock Lever
£7.10 £5.92

  16 Pawl Spring
Pawl Spring
HP75168-VA4-000 Out of stock
Pawl Spring
£5.51 £4.59

  17 Lock Lever Pin Assy
Lock Lever Pin Assy
HP75192-VE0-L00 Out of stock
Lock Lever Pin Assy
£2.04 £1.70

  18 Handle Bolt
Handle Bolt
HP90101-VE0-000 Out of stock
Handle Bolt
£2.88 £2.40

  19 Clutch Lever Pin
Clutch Lever Pin
HP90106-VA4-800 Out of stock
Clutch Lever Pin
£9.95 £8.29

  20 Plain Washer 5mm
Plain Washer 5mm
HP94101-05800 Out of stock
Plain Washer 5mm
£1.09 £0.91

  21 Frame Joint Washer
Frame Joint Washer
HP90501-898-000 Out of stock
Frame Joint Washer
£3.96 £3.30

  22 Cable Joint Pin
Cable Joint Pin
HP90702-VE0-L01 Out of stock
Cable Joint Pin
£3.24 £2.70

  22 Cable Joint Pin
Cable Joint Pin
HP90754-VA9-P40 Out of stock
Cable Joint Pin
£3.08 £2.57

  23 Lever Hinge Lock Pin
Lever Hinge Lock Pin
HP90753-VA3-J00 Out of stock
Lever Hinge Lock Pin
£4.13 £3.44

  24 Special Washer 6mm
Special Washer 6mm
HP90407-952-300 Out of stock
Special Washer 6mm
£4.10 £3.42

  25 Plain Washer 8mm
Plain Washer 8mm
HP94101-08000 Out of stock
Plain Washer 8mm
£1.09 £0.91

  26 Lock Pin 6mm
Lock Pin 6mm
HP94251-06000 Out of stock
Lock Pin 6mm
£1.45 £1.21

  27 Lock Pin 8mm
Lock Pin 8mm
HP94251-08000 Out of stock
Lock Pin 8mm
£1.75 £1.46

  28 Collar 8 X 11 X 13.5
Collar 8 X 11 X 13.5
HP90552-VA3-J00 Out of stock
Collar 8 X 11 X 13.5
£5.89 £4.91

  29 Special Washer 5mm
Special Washer 5mm
HP90407-VG8-000 Out of stock
Special Washer 5mm
£1.01 £0.84
