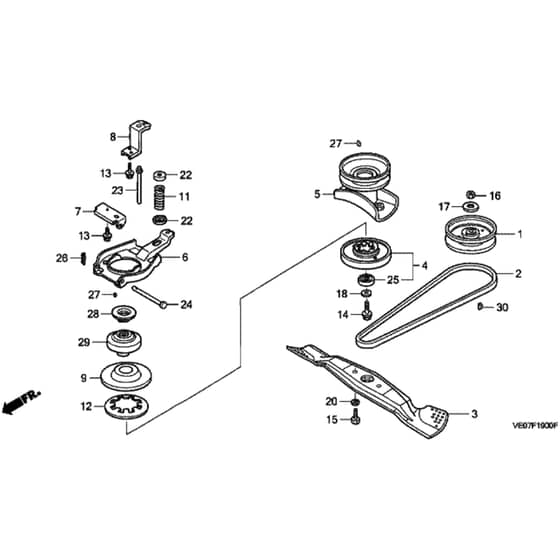

Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram

Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram
Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram

Description

Honda HRB475K2 - HXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Pulley
Pulley
HP22420-VE0-J50 Out of stock
Pulley
£69.24 £57.70

  2 Belt
Belt
HP22431-VE0-800 Out of stock
Belt
£29.60 £24.67

  3 Blade
Blade
HP72511-VE0-N00 In stock
Blade
£45.74 £38.12

  4 Blade Holder Assy
Blade Holder Assy
HP72600-VE0-000 Out of stock
Blade Holder Assy
£86.40 £72.00

  6 Brake Arm Assy
Brake Arm Assy
HP75130-VE0-020 Out of stock
Brake Arm Assy
£79.86 £66.55

  7 Clutch Arm Hinge
Clutch Arm Hinge
HP75148-VE0-000 Out of stock
Clutch Arm Hinge
£7.34 £6.12

  8 Holder
Holder
HP75149-VE0-000 Out of stock
Holder
£24.72 £20.60

  9 Driven Disk
Driven Disk
HP75151-VE0-000 Out of stock
Driven Disk
£154.16 £128.47

  11 Clutch Return Spring
Clutch Return Spring
HP75182-VE0-000 Out of stock
Clutch Return Spring
£12.12 £10.10

  12 Clutch Spring
Clutch Spring
HP75183-VE0-000 Out of stock
Clutch Spring
£32.52 £27.10

  13 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  14 Bolt Hex 10 X 25
Bolt Hex 10 X 25
HP90105-VA3-J01 In stock
Bolt Hex 10 X 25
£3.90 £3.25

  15 Blade Bolt
Blade Bolt
HP90105-960-710 Out of stock
Blade Bolt
£2.65 £2.21

  16 Nut
Nut
HP90304-GA6-003 Out of stock
Nut
£4.92 £4.10

  17 Thrust Washer
Thrust Washer
HP90405-KV3-000 Out of stock
Thrust Washer
£3.58 £2.98

  18 Washer 10Mm
Washer 10Mm
HP90409-952-000 In stock
Washer 10Mm
£1.40 £1.17

  20 Washer
Washer
HP90481-430-000 In stock
Washer
£4.42 £3.68

  22 Washer
Washer
HP90557-461-000 Out of stock
Washer
£2.33 £1.94

  23 Spring Guide Pin
Spring Guide Pin
HP90701-VE0-000 In stock
Spring Guide Pin
£17.44 £14.53

  24 Bonnet Hinge Pin
Bonnet Hinge Pin
HP90756-735-000 Out of stock
Bonnet Hinge Pin
£8.24 £6.87

  25 Bearing
Bearing
HP91102-VA4-013 In stock
Bearing
£29.38 £24.48

  26 Split Pin 2.0 X 15
Split Pin 2.0 X 15
HP94201-20150 Out of stock
Split Pin 2.0 X 15
£1.69 £1.41

  27 Woodruff Key
Woodruff Key
HP94401-16150 In stock
Woodruff Key
£0.68 £0.57

  28 Pulley
Pulley
HP75161-VE2-801 Out of stock
Pulley
£69.24 £57.70

  29 Pulley
Pulley
HP75162-VE2-801 Out of stock
Pulley
£84.36 £70.30

  30 Woodruff Key
Woodruff Key
HP90751-VE2-M00 Out of stock
Woodruff Key
£0.35 £0.29


Description

Honda HRB475K2 - HXE Rotary Mower Parts Diagram
