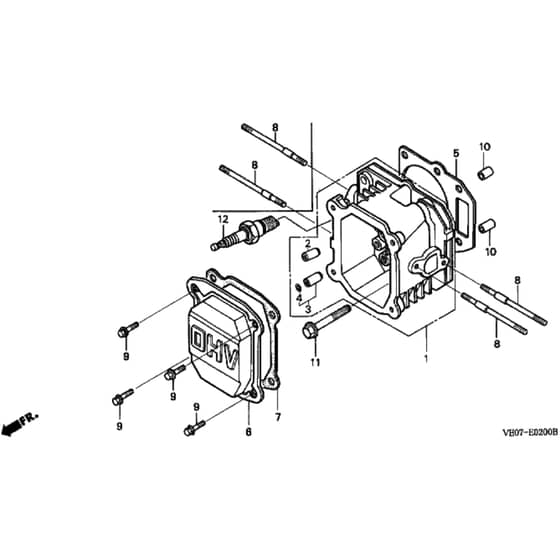

Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Cylinder Head Diagram

Name: Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Cylinder Head Diagram
SKU: hrb475k2_hxe_mzaz_8200001_8299999_cylinder_head-group
Price: 0.90 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K2 - HXE - MZAZ 8200001-8299999 Cylinder Head Diagram

Description

Honda HRB475K2 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP12204-ZE1-306 Out of stock	Inlet Valve Guide	£11.86 £9.88
3	HP12205-ZE1-315 Out of stock	Exhaust Valve Guide	£13.37 £11.14
4	HP12216-ZE5-300 Out of stock	Valve Guide Clip	£3.91 £3.26
5	HP12251-ZG9-000 Out of stock	Cylinder Head Gasket	£11.93 £9.94
6	HP12311-ZG9-800 Out of stock	Rocker Cover	£23.63 £19.69
7	HP12391-ZG9-800 Out of stock	Rocker Cover Gasket	£13.32 £11.10
8	HP90013-ZG9-T00 Out of stock	Stud 6 X 83	£5.39 £4.49
9	HP957001-061600 Out of stock	Bolt	£1.08 £0.90
10	HP94301-10160 Out of stock	Dowel Pin 10 X 16	£3.73 £3.11
11	HP95701-0805000 Out of stock	Bolt	£2.30 £1.92
12	2135 In stock	Spark Plug	£3.54 £2.95
12	7230 In stock	Spark Plug	£4.13 £3.44
12	2136 In stock	Spark Plug	£3.02 £2.52
