Honda HRB475K2 - HME - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram

Honda HRB475K2 - HME - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram
Honda HRB475K2 - HME - MZAZ 8200001-8299999 Pulley/Rotary Blade Diagram

Description

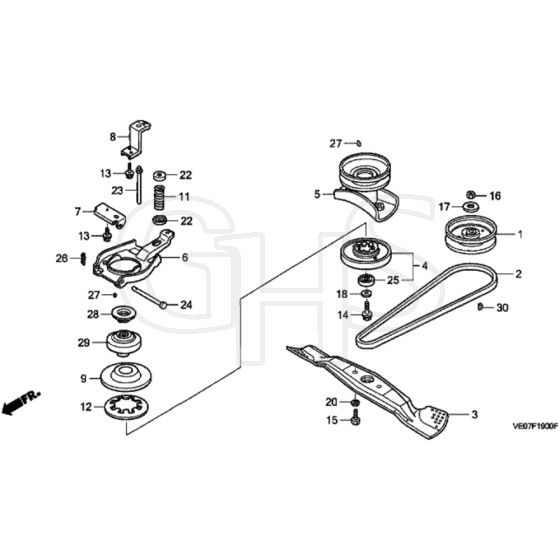

Honda HRB475K2 - HME Rotary Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Pulley HP22420-VE0-J50
Pulley
 Out of stock
£69.24 £57.70

  3 Blade HP72511-VE0-N00
Blade
 In stock
£45.74 £38.12

  2 Belt HP22431-VE0-800
Belt
 Out of stock
£33.92 £28.27

  4 Blade Holder Assy HP72600-VE0-000
Blade Holder Assy
 Out of stock
£86.40 £72.00

  5 Blade Holder Assy HP72610-VE0-750
Blade Holder Assy
 Out of stock
£39.64 £33.03

  6 Brake Arm Assy HP75130-VE0-020
Brake Arm Assy
 Out of stock
£79.86 £66.55

  7 Clutch Arm Hinge HP75148-VE0-000
Clutch Arm Hinge
 Out of stock
£7.34 £6.12

  8 Holder HP75149-VE0-000
Holder
 Out of stock
£24.72 £20.60

  9 Driven Disk HP75151-VE0-000
Driven Disk
 Out of stock
£145.68 £121.40

  11 Clutch Return Spring HP75182-VE0-000
Clutch Return Spring
 Out of stock
£12.12 £10.10

  12 Clutch Spring HP75183-VE0-000
Clutch Spring
 Out of stock
£32.52 £27.10

  13 Flange Bolt 6 X 14 HP90014-952-000
Flange Bolt 6 X 14
 Out of stock
£4.26 £3.55

  14 Bolt Hex 10 X 25 HP90105-VA3-J01
Bolt Hex 10 X 25
 In stock
£3.90 £3.25

  15 Blade Bolt HP90105-960-710
Blade Bolt
 Out of stock
£2.74 £2.28

  16 Nut HP90304-GA6-003
Nut
 Out of stock
£4.92 £4.10

  17 Thrust Washer HP90405-KV3-000
Thrust Washer
 Out of stock
£3.71 £3.09

  18 Washer 10Mm HP90409-952-000
Washer 10Mm
 In stock
£1.40 £1.17

  20 Washer HP90481-430-000
Washer
 Out of stock
£4.42 £3.68

  22 Washer HP90557-461-000
Washer
 Out of stock
£2.33 £1.94

  23 Spring Guide Pin HP90701-VE0-000
Spring Guide Pin
 Out of stock
£17.44 £14.53

  24 Bonnet Hinge Pin HP90756-735-000
Bonnet Hinge Pin
 Out of stock
£8.24 £6.87

  25 Bearing HP91102-VA4-013
Bearing
 In stock
£32.09 £26.74

  26 Split Pin 2.0 X 15 HP94201-20150
Split Pin 2.0 X 15
 Out of stock
£1.69 £1.41

  27 Woodruff Key HP94401-16150
Woodruff Key
 In stock
£0.68 £0.57

  28 Pulley HP75161-VE2-801
Pulley
 In stock
Was £82.72 £68.93 Special Price £35.99 £29.99

  29 Pulley HP75162-VE2-801
Pulley
 Out of stock
£84.36 £70.30

  30 Woodruff Key HP90751-VE2-M00
Woodruff Key
 Out of stock
£0.35 £0.29


Description

Honda HRB475K2 - HME Rotary Mower Parts Diagram
