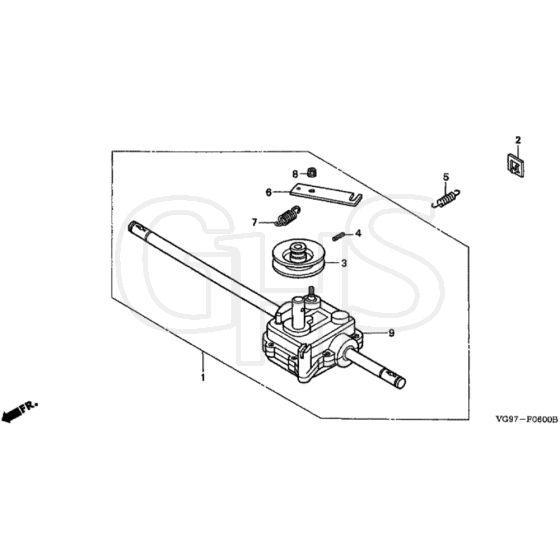

Honda HRB475C - SDEE - MZCE 8000001-8999999 Transmission Diagram

Honda HRB475C - SDEE - MZCE 8000001-8999999 Transmission Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - SDEE - MZCE 8000001-8999999 Transmission Diagram

Honda HRB475C - SDEE - MZCE 8000001-8999999 Transmission Diagram

Description

Honda HRB475C - SDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP20001-VE0-L02 Out of stock	Transmission Assy		£236.39 £196.99
	2		HP21557-VE0-800 Out of stock	Tension Spring Plate		£3.78 £3.15
	3		HP22421-VK7-800 Out of stock	Pulley		£16.88 £14.07
	4		HP22428-VA9-F60 Out of stock	Spring Pin		£0.77 £0.64
	5		HP22534-VA9-K41 Out of stock	Tension Spring		£6.78 £5.65
	6		HP23436-VE0-851 Out of stock	Clutch Arm		£16.87 £14.06
	7		HP23439-VE0-851 Out of stock	Clutch Arm Return Spring		£3.95 £3.29
	8		HP90301-VE0-L01 Out of stock	Lock Nut 5Mm		£5.76 £4.80

Description

Honda HRB475C - SDEE Rotary Mower Parts Diagram
