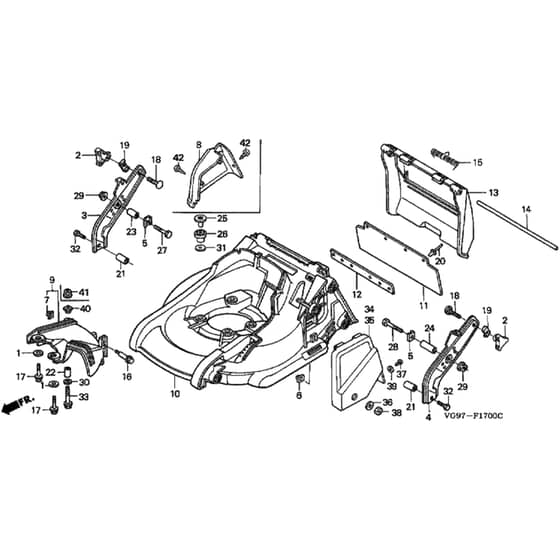

Honda HRB475C - SDE - MZCE 8000001-8999999 Cutter Housing Diagram

Name: Honda HRB475C - SDE - MZCE 8000001-8999999 Cutter Housing Diagram
SKU: hrb475c_sde_mzce_8000001_8999999_cutter_housing-group
Price: 0.82 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - SDE - MZCE 8000001-8999999 Cutter Housing Diagram

Description

Honda HRB475C - SDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP53101-GN5-900 Out of stock	Washer	£6.30 £5.25
2	HP53125-VA3-680 In stock	Handle Grip	£11.88 £9.90
3	HP53130-VE0-000ZB Out of stock	Handle Stay	£34.64 £28.87
5	HP53137-VE2-000 Out of stock	Handle Stay Holder	£8.24 £6.87
7	HP61304-958-003 Out of stock	Nut	£6.37 £5.31
9	HP76105-VE0-000ZA Out of stock	Guide Scroll Assy	£84.36 £70.30
10	HP76111-VE0-L01 Out of stock	Mower Housing	£170.16 £141.80
12	HP76119-VE0-763 Out of stock	Shield Plate	£14.94 £12.45
13	HP76281-VE0-000ZA Out of stock	Discharge Guard	£97.44 £81.20
14	HP76312-VA3-F40 Out of stock	Discharge Guard Shaft	£6.40 £5.33
15	HP76284-VG8-000 Out of stock	Guard Return Spring	£6.68 £5.57
16	HP90101-VA9-K40 Out of stock	Special Bolt 6Mm	£8.75 £7.29
17	HP90102-VE0-000 Out of stock	Engine Setting Bolt	£3.04 £2.53
18	HP90133-VE0-B50 Out of stock	Pan Head Bolt 8 X 42	£1.58 £1.32
19	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
20	HP90841-MN8-300 Out of stock	Rivet	£4.73 £3.94
21	HP91551-VE2-000 Out of stock	Lower Stay Collar	£2.74 £2.28
22	HP91552-VE0-010 Out of stock	Collar 12.7 X 76.5	£4.96 £4.13
23	HP91557-VE0-000 Out of stock	Arm Collar	£11.58 £9.65
24	HP91558-VE0-000 Out of stock	Collar 12.7 X 42.5	£2.18 £1.82
25	HP91651-VE0-750 Out of stock	Engine Bed Collar	£8.14 £6.78
26	HP91652-VE0-000 In stock	Adiabatic Collar	£7.30 £6.08
27	HP92101-080450A Out of stock	Bolt	£2.87 £2.39
28	HP92101-080600A Out of stock	Bolt	£1.76 £1.47
29	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
30	HP94101-08800 Out of stock	Plain Washer 8Mm	£0.98 £0.82
31	HP94103-08800 Out of stock	Plain Washer 8Mm	£1.09 £0.91
32	HP95701-0802200 Out of stock	Flange Bolt 8 X 22	£2.26 £1.88
33	HP95701-0809000 Out of stock	Bolt	£3.49 £2.91
40	HP61304-165-013 Out of stock	Head Light Set Nut	£5.57 £4.64
