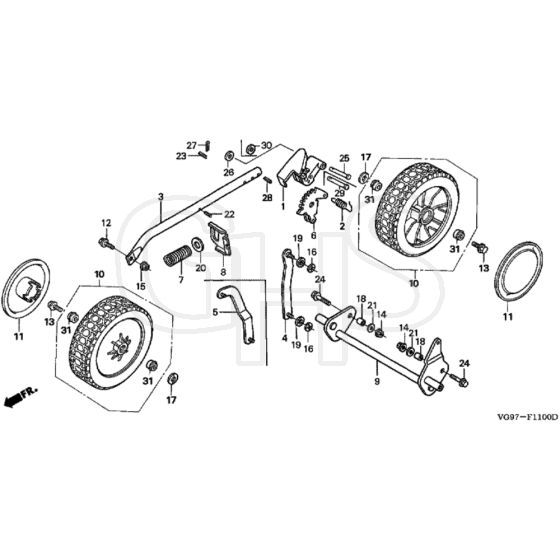

Honda HRB475C - PDEE - MZCE 8000001-8999999 Front Wheel Diagram

Honda HRB475C - PDEE - MZCE 8000001-8999999 Front Wheel Diagram
Honda HRB475C - PDEE - MZCE 8000001-8999999 Front Wheel Diagram

Description

Honda HRB475C - PDEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Height Adjuster Lever
Height Adjuster Lever
HP42961-VE0-000 Out of stock
Height Adjuster Lever
£21.72 £18.10

  2 Return Spring
Return Spring
HP42962-VE0-000 Out of stock
Return Spring
£3.66 £3.05

  3 Adjuster Arm
Adjuster Arm
HP42963-VE0-000 Out of stock
Adjuster Arm
£19.08 £15.90

  5 Adjuster Arm
Adjuster Arm
HP42964-VE0-000 Out of stock
Adjuster Arm
£19.04 £15.87

  6 Height Panel
Height Panel
HP42991-VE0-000 Out of stock
Height Panel
£23.40 £19.50

  7 Balancer Spring
Balancer Spring
HP42992-VE0-000 Out of stock
Balancer Spring
£30.37 £25.31

  8 Seat Spring
Seat Spring
HP42993-VE0-000 Out of stock
Seat Spring
£3.40 £2.83

  9 Front Axle Shaft
Front Axle Shaft
HP44310-VE0-000 Out of stock
Front Axle Shaft
£146.64 £122.20

  11 Hub Cap
Hub Cap
HP44719-VE0-751ZA In stock
Hub Cap
£3.88 £3.23

  13 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  14 Nut
Nut
HP90115-659-003 Out of stock
Nut
£6.30 £5.25

  15 Nut
Nut
HP90301-473-003 Out of stock
Nut
£6.30 £5.25

  16 Special Washer 8Mm
Special Washer 8Mm
HP90407-VA9-K40 In stock
Special Washer 8Mm
£1.56 £1.30

  17 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  18 Adjusting Collar
Adjusting Collar
HP91905-VA9-000 Out of stock
Adjusting Collar
£4.13 £3.44

  19 Plain Washer 8Mm
Plain Washer 8Mm
HP94101-08000 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  20 Washer
Washer
HP94101-16000 Out of stock
Washer
£1.04 £0.87

  21 Plain Washer 8Mm
Plain Washer 8Mm
HP94103-08000 Out of stock
Plain Washer 8Mm
£0.48 £0.40

  22 Spring Pin 4 X 28
Spring Pin 4 X 28
HP94305-40282 Out of stock
Spring Pin 4 X 28
£2.52 £2.10

  23 Spring Pin 6 X 30
Spring Pin 6 X 30
HP94305-60302 Out of stock
Spring Pin 6 X 30
£2.52 £2.10

  24 Flange Bolt 8 X 50
Flange Bolt 8 X 50
HP95801-0805000 Out of stock
Flange Bolt 8 X 50
£2.60 £2.17

  31 Bearing
Bearing
HP91051-VE0-750 In stock
Bearing
£11.40 £9.50


Description

Honda HRB475C - PDEE Rotary Mower Parts Diagram
