Honda HRB475 - SXS - MZAZ 8000001-8099999 Handle Pipe Diagram

Description

Honda HRB475 - SXS Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
2	HP50603-KB4-000 Out of stock	Pin	£7.86 £6.55
3	HP50603-MC4-000 Out of stock	Pin	£7.64 £6.37
4	HP53110-VE0-000 Out of stock	Upper Handle	£157.12 £130.93
6	HP53150-VE0-750ZA Out of stock	Lower Handle Assy	£58.12 £48.43
7	HP53160-VE0-750ZA Out of stock	Lower Handle Assy	£27.80 £23.17
8	HP53165-VE0-000 Out of stock	Handle Grip	£44.68 £37.23
10	HP53168-VE0-000ZA Out of stock	Connecting Pipe	£115.44 £96.20
11	HP53169-VE0-000 Out of stock	Handle Connecting Plate	£4.94 £4.12
13	HP53176-VE0-750ZA Out of stock	Cover	£3.40 £2.83
14	HP54410-VE0-M50ZA Out of stock	Clutch Lever Assy	£28.26 £23.55
15	HP54411-VA3-P00 In stock	Clutch Spring	£8.40 £7.00

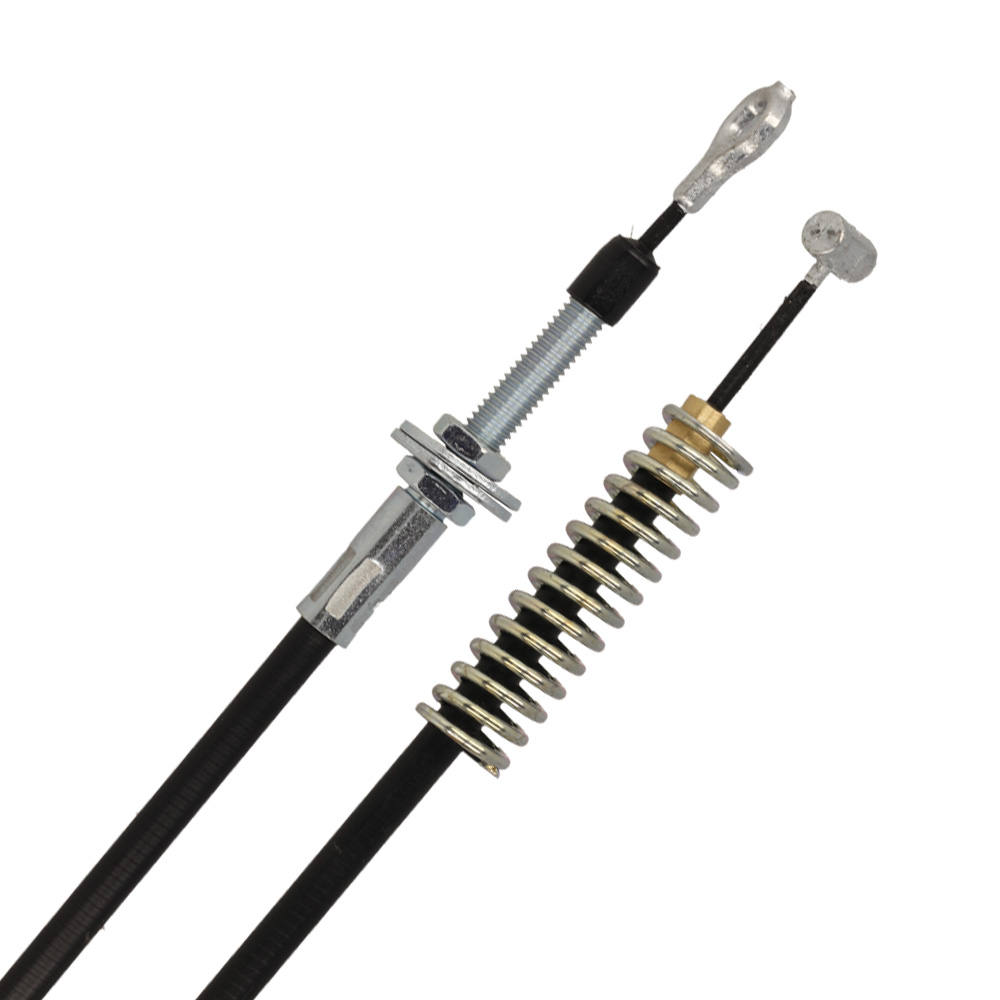

17	HP54510-VE0-C51 In stock	Clutch Cable	£32.12 £26.77
18	HP54530-VE0-003 Out of stock	Roto-Stop Cable	£27.26 £22.72
19	HP75118-VE0-000 Out of stock	Stop Return Spring R H	£4.54 £3.78
20	HP75128-VE0-000 In stock	Cable Arm	£13.26 £11.05
21	HP75165-VE0-000 Out of stock	Ratchet Push Rod	£9.48 £7.90
22	HP75166-VE0-000 Out of stock	Lock Lever	£4.03 £3.36
23	HP75168-VE0-000 Out of stock	Pawl Spring	£1.14 £0.95
24	HP75191-VE0-000 Out of stock	Roto-Stop Lever	£58.81 £49.01
25	HP77226-750-003 Out of stock	Pin	£6.26 £5.22
26	HP90101-VE0-000 Out of stock	Handle Bolt	£2.88 £2.40
27	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
28	HP90754-VA3-J00 Out of stock	Cable Joint Pin	£4.20 £3.50
29	HP91553-VE0-000 Out of stock	Handle Collar	£3.32 £2.77
30	HP93911-24120 Out of stock	Tapping Screw	£1.80 £1.50
31	HP93913-24320 Out of stock	Tapping Screw	£1.80 £1.50
32	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
34	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
35	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
36	HP95701-0804500 Out of stock	Flange Bolt 8 X 45	£2.62 £2.18
36	HP95701-08045-07 Out of stock	Bolt	£1.56 £1.30
