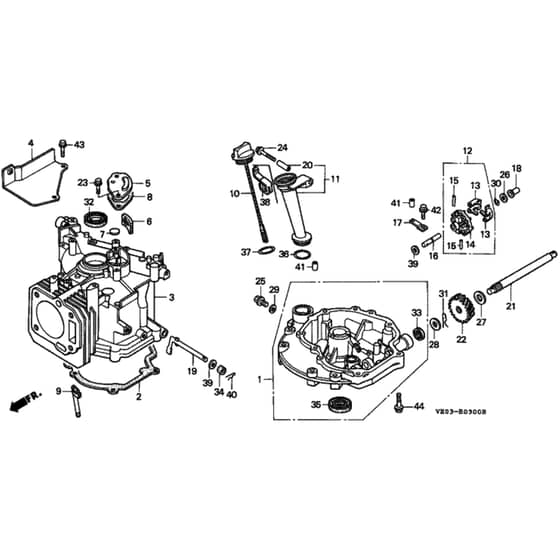

Honda HRB475 - QXE - MZAZ 8000001-8099999 Cylinder Barrel/Oil Pan Diagram

Name: Honda HRB475 - QXE - MZAZ 8000001-8099999 Cylinder Barrel/Oil Pan Diagram
SKU: hrb475_qxe_mzaz_8000001_8099999_cylinder_barrel_oil_pan-group
Price: 0.91 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475 - QXE - MZAZ 8000001-8099999 Cylinder Barrel/Oil Pan Diagram

Description

Honda HRB475 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP11381-ZG9-T00 Out of stock	Crankcase Gasket	£8.24 £6.87
3	HP12100-ZG9-415 Out of stock	Cylinder Assy	£349.22 £291.02
4	HP12125-ZG9-000 Out of stock	Guide Plate	£13.20 £11.00
5	HP12360-ZE6-000 Out of stock	Breather Cap	£20.88 £17.40
6	HP12367-ZE6-010 Out of stock	Breather Filter	£6.73 £5.61
7	HP12372-879-000 Out of stock	Breather Valve	£1.72 £1.43
8	HP12373-ZE6-000 Out of stock	Breather Gasket	£2.06 £1.72
9	HP12385-ZE6-000 Out of stock	Oil Defence Pipe	£8.60 £7.17
10	HP15620-ZE6-810 Out of stock	Oil Level Gauge Assy	£19.27 £16.06
11	HP15630-ZE6-810 Out of stock	Dipstick Tube	£29.75 £24.79
12	HP16510-ZE6-000 In stock	Governor Assy	£28.07 £23.39
13	HP16511-ZE1-000 Out of stock	Governor Weight	£4.42 £3.68
14	HP16512-ZE6-000 Out of stock	Governor Weight Holder	£17.52 £14.60
15	HP16513-ZE1-000 Out of stock	Governor Weight Pin	£2.32 £1.93
16	HP16515-ZE6-010 Out of stock	Governor Holder Shaft	£8.48 £7.07
17	HP16525-ZE6-010 Out of stock	Governor Shaft Holder Plate	£8.48 £7.07
18	HP16531-ZE1-000 Out of stock	Governor Slider	£4.96 £4.13
19	HP16541-ZE7-000 Out of stock	Governor Arm Shaft	£11.75 £9.79
20	HP17240-ZE6-000 Out of stock	Collar	£7.64 £6.37
21	HP23411-ZE6-000 Out of stock	Drive Shaft	£54.92 £45.77
22	HP23421-ZE6-000 Out of stock	Driven Gear	£47.95 £39.96
23	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
24	HP90017-883-000 Out of stock	Flange Bolt	£4.70 £3.92
25	HP90131-ZE1-000 Out of stock	Drain Plug	£2.82 £2.35
26	HP90451-ZE1-000 Out of stock	Thrust Washer 6mm	£2.16 £1.80
27	HP90452-166-600 Out of stock	Washer	£1.50 £1.25
28	HP90452-187-000 Out of stock	Washer	£4.73 £3.94
29	HP90601-ZE1-000 Out of stock	Drain Plug Washer 10.2mm	£1.18 £0.98
30	HP90602-ZE1-000 Out of stock	Governor Holder Clip	£3.91 £3.26
31	HP90701-ZE6-000 Out of stock	Lock Pin 2mm	£2.81 £2.34
32	HP91202-ZE6-003 In stock	Oil Seal	£10.62 £8.85
33	HP91205-KF0-003 Out of stock	Oil Seal	£2.70 £2.25
34	HP91231-891-003 In stock	Oil Seal	£2.48 £2.07
35	HP91252-888-003 Out of stock	Oil Seal 25 X 38 X 7	£14.50 £12.08
36	HP91301-ZE9-003 Out of stock	O Ring 22.1 X 2.2	£2.00 £1.67
37	HP91301-805-000 Out of stock	O Ring 26 X 2.7	£3.85 £3.21
39	HP94101-06800 Out of stock	Plain Washer 6mm	£1.09 £0.91
40	HP94251-08000 Out of stock	Lock Pin 8mm	£1.75 £1.46
41	HP94301-08140 Out of stock	Dowel Pin 8 X 14	£3.20 £2.67
42	HP95701-0601208 Out of stock	Flange Bolt 6 X 12	£1.50 £1.25
43	HP95701-06020-00 Out of stock	Bolt	£1.58 £1.32
44	HP95701-0602800 Out of stock	Flange Bolt 6 X 28	£1.75 £1.46
