Honda HRB475 - PG - MZAZ 8000001-8099999 Transmission (QXE) Diagram

Honda HRB475 - PG - MZAZ 8000001-8099999 Transmission (QXE) Diagram
Honda HRB475 - PG - MZAZ 8000001-8099999 Transmission (QXE) Diagram

Description

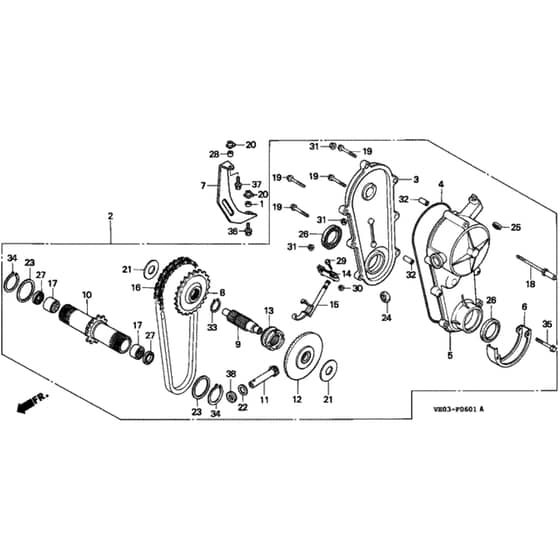

Honda HRB475 - PG Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Fan Cover Collar
Fan Cover Collar
HP19612-896-750 Out of stock
Fan Cover Collar
£2.36 £1.97

  2 Transmission Assy
Transmission Assy
HP20001-VG0-A52 Out of stock
Transmission Assy
£480.00 £400.00

  3 Transmission Case R H
Transmission Case R H
HP21511-VA5-700 Out of stock
Transmission Case R H
£76.92 £64.10

  4 Transmission Case O Ring
Transmission Case O Ring
HP21592-VA5-701 Out of stock
Transmission Case O Ring
£7.44 £6.20

  6 Case Protector
Case Protector
HP21911-VA5-700 In stock
Case Protector
£15.66 £13.05

  7 Transmission Guide
Transmission Guide
HP22511-VE0-C50 Out of stock
Transmission Guide
£23.30 £19.42

  8 Drive Sprocket
Drive Sprocket
HP23120-VA5-700 Out of stock
Drive Sprocket
£61.92 £51.60

  9 Countershaft
Countershaft
HP23221-VA5-700 Out of stock
Countershaft
£55.87 £46.56

  10 Drive Sprocket
Drive Sprocket
HP23372-VA5-701 Out of stock
Drive Sprocket
£115.20 £96.00

  11 Bevel Pinion
Bevel Pinion
HP23411-VB3-810 Out of stock
Bevel Pinion
£43.18 £35.98

  12 Bevel Gear
Bevel Gear
HP23421-VA4-800 Out of stock
Bevel Gear
£94.84 £79.03

  13 Driven Clutch
Driven Clutch
HP23431-VA4-801 Out of stock
Driven Clutch
£38.88 £32.40

  14 Clutch Arm
Clutch Arm
HP23436-VA5-701 In stock
Clutch Arm
£13.02 £10.85

  15 Shift Shaft
Shift Shaft
HP23440-VA4-801 Out of stock
Shift Shaft
£27.67 £23.06

  16 Roller Chain
Roller Chain
HP23861-VA5-701 Out of stock
Roller Chain
£66.56 £55.47

  17 Needle Bearing
Needle Bearing
HP41103-935-003 In stock
Needle Bearing
£15.16 £12.63

  18 Bolt Guide
Bolt Guide
HP90012-VA5-700 Out of stock
Bolt Guide
£6.89 £5.74

  19 Flange Bolt 6 X 25
Flange Bolt 6 X 25
HP90121-952-000 Out of stock
Flange Bolt 6 X 25
£3.07 £2.56

  20 Nut
Nut
HP61304-958-003 Out of stock
Nut
£6.37 £5.31

  21 Thrust Washer 12Mm
Thrust Washer 12Mm
HP90452-VB5-800 Out of stock
Thrust Washer 12Mm
£5.45 £4.54

  22 Washer
Washer
HP90452-187-000 Out of stock
Washer
£4.73 £3.94

  23 Thrust Washer 28Mm
Thrust Washer 28Mm
HP90458-729-920 Out of stock
Thrust Washer 28Mm
£8.26 £6.88

  24 Oil Seal
Oil Seal
HP91202-KA3-711 Out of stock
Oil Seal
£3.70 £3.08

  25 Oil Seal 8 X 14 X 5
Oil Seal 8 X 14 X 5
HP91201-ZE9-003 Out of stock
Oil Seal 8 X 14 X 5
£4.79 £3.99

  26 Oil Seal 28 X 38 X 6
Oil Seal 28 X 38 X 6
HP91251-VA5-701 In stock
Oil Seal 28 X 38 X 6
£8.48 £7.07

  27 Dust Seal
Dust Seal
HP91252-VA5-701 In stock
Dust Seal
£8.26 £6.88

  28 Collar
Collar
HP91554-VE0-C50 Out of stock
Collar
£2.47 £2.06

  29 Screw Pan 5X20
Screw Pan 5X20
HP93500-050200A Out of stock
Screw Pan 5X20
£1.55 £1.29

  29 Bolt
Bolt
HP92101-050200A Out of stock
Bolt
£1.01 £0.84

  30 Hex Nut 5Mm
Hex Nut 5Mm
HP94001-050000S Out of stock
Hex Nut 5Mm
£3.61 £3.01

  31 Flange Nut 6Mm
Flange Nut 6Mm
HP94050-06000 In stock
Flange Nut 6Mm
£4.01 £3.34

  32 Dowel Pin 8 X 14
Dowel Pin 8 X 14
HP94301-08140 Out of stock
Dowel Pin 8 X 14
£3.20 £2.67

  33 External Circlip 18Mm
External Circlip 18Mm
HP94510-18000 Out of stock
External Circlip 18Mm
£1.50 £1.25

  34 External Circlip 28Mm
External Circlip 28Mm
HP94510-28000 In stock
External Circlip 28Mm
£3.78 £3.15

  35 Bolt
Bolt
HP95701-0603200 Out of stock
Bolt
£1.63 £1.36

  36 Flange Bolt
Flange Bolt
HP95701-060-1800 Out of stock
Flange Bolt
£1.58 £1.32

  37 Flange Bolt
Flange Bolt
HP95701-060-2000 Out of stock
Flange Bolt
£1.58 £1.32
