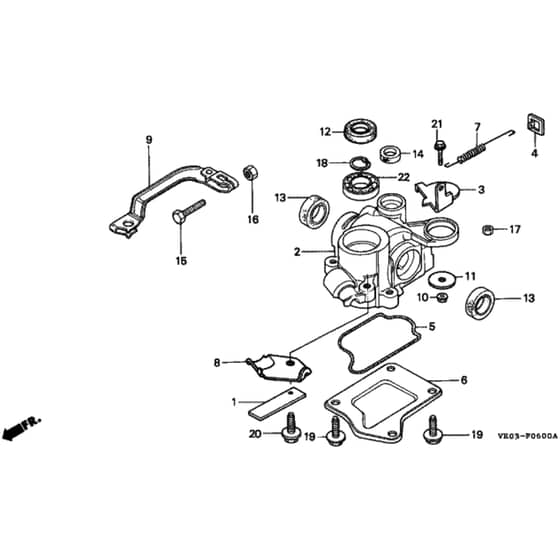

Honda HRB475 - PG - MZAZ 8000001-8099999 Gear Case (SE, SG, SXE, SXG, SXS) Diagram

Honda HRB475 - PG - MZAZ 8000001-8099999 Gear Case (SE, SG, SXE, SXG, SXS) Diagram
Honda HRB475 - PG - MZAZ 8000001-8099999 Gear Case (SE, SG, SXE, SXG, SXS) Diagram

Description

Honda HRB475 - PG Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Stopper
Stopper
HP21284-VE0-830 Out of stock
Stopper
£2.36 £1.97

  2 Upper Gear Case
Upper Gear Case
HP21511-VA9-H40 In stock
Upper Gear Case
Was £82.56 £68.80 Special Price £54.10 £45.08

  3 Hook Tension Spring
Hook Tension Spring
HP21556-VE0-800 Out of stock
Hook Tension Spring
£3.14 £2.62

  4 Tension Spring Plate
Tension Spring Plate
HP21557-VE0-800 Out of stock
Tension Spring Plate
£3.78 £3.15

  5 O Ring
O Ring
HP21581-952-770 Out of stock
O Ring
£4.58 £3.82

  6 Cover
Cover
HP21611-952-770 Out of stock
Cover
£10.12 £8.43

  7 Tension Spring
Tension Spring
HP22534-VA9-K41 Out of stock
Tension Spring
£6.78 £5.65

  8 Holder
Holder
HP22535-VA9-K40 Out of stock
Holder
£10.04 £8.37

  10 Nut
Nut
HP90301-473-003 Out of stock
Nut
£6.30 £5.25

  11 Washer
Washer
HP90404-PD1-000 Out of stock
Washer
£2.24 £1.87

  12 Oil Seal
Oil Seal
HP91201-GS3-000 Out of stock
Oil Seal
£10.14 £8.45

  13 Oil Seal
Oil Seal
HP91201-965-000 Out of stock
Oil Seal
£6.30 £5.25

  14 Oil Seal 8 X 14 X 5
Oil Seal 8 X 14 X 5
HP91201-ZE9-003 Out of stock
Oil Seal 8 X 14 X 5
£4.79 £3.99

  15 Bolt
Bolt
HP92101-060200A Out of stock
Bolt
£1.01 £0.84

  16 Hex Nut 6Mm
Hex Nut 6Mm
HP94001-062000S Out of stock
Hex Nut 6Mm
£3.61 £3.01

  17 Hex Nut 8Mm
Hex Nut 8Mm
HP94030-08000 Out of stock
Hex Nut 8Mm
£3.61 £3.01

  18 Internal Circlip 28Mm
Internal Circlip 28Mm
HP94520-28000 Out of stock
Internal Circlip 28Mm
£2.47 £2.06

  19 Bolt
Bolt
HP95701-0601200 Out of stock
Bolt
£1.45 £1.21

  20 Bolt
Bolt
HP957001-061600 Out of stock
Bolt
£1.08 £0.90

  21 Bolt
Bolt
HP95701-06020-00 Out of stock
Bolt
£1.58 £1.32

  22 Bearing
Bearing
HP96100-6001000 Out of stock
Bearing
£17.17 £14.31


Description

Honda HRB475 - PG Rotary Mower Parts Diagram
