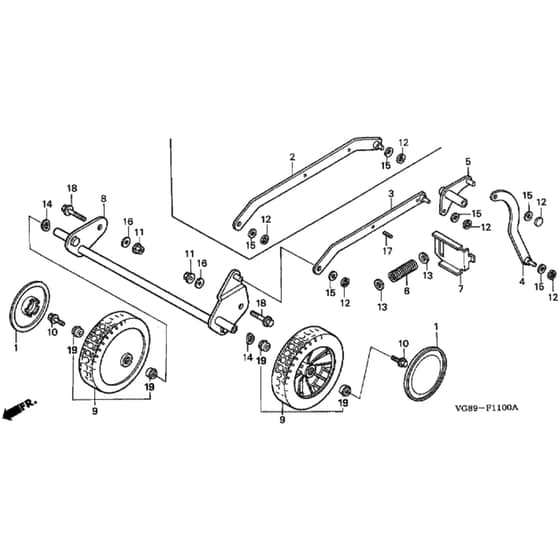

Honda HRB425C1 - SXE - MZCF 8000001-8499999 Front Wheel Diagram

Name: Honda HRB425C1 - SXE - MZCF 8000001-8499999 Front Wheel Diagram
SKU: hrb425c1_sxe_mzcf_8000001_8499999_front_wheel-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C1 - SXE - MZCF 8000001-8499999 Front Wheel Diagram

Description

Honda HRB425C1 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42719-VA9-B51ZA Out of stock	Hub Cap	£4.08 £3.40
2	HP42963-VG8-000 Out of stock	Adjuster Arm	£20.68 £17.23
6	HP42992-VE0-000 Out of stock	Balancer Spring	£30.37 £25.31
7	HP42993-VG8-000 Out of stock	Seat Spring	£9.62 £8.02
8	HP44310-VG8-000 Out of stock	Front Shaft	£72.60 £60.50
9	HP44710-VA9-B60ZB Out of stock	Front Wheel	£55.66 £46.38
10	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
11	HP90115-659-003 Out of stock	Nut	£6.30 £5.25
12	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.56 £1.30
13	HP90501-VG8-000 Out of stock	Spring Washer	£1.72 £1.43
14	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
16	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
17	HP94305-40282 Out of stock	Spring Pin 4 X 28	£2.52 £2.10
18	HP95801-0804500 Out of stock	Flange Bolt 8 X 45	£2.47 £2.06
19	HP91051-VE0-750 In stock	Bearing	£11.40 £9.50
