Honda HRB425C1 - SQE - MZCF 8000001-8499999 Roller Diagram

Name: Honda HRB425C1 - SQE - MZCF 8000001-8499999 Roller Diagram
SKU: hrb425c1_sqe_mzcf_8000001_8499999_roller_qxe_sqe_-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

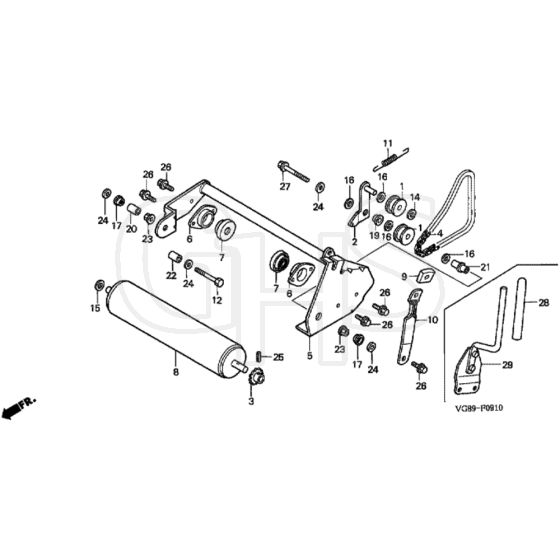

Honda HRB425C1 - SQE - MZCF 8000001-8499999 Roller Diagram

Description

Honda HRB425C1 - SQE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HPPB12166 In stock	Tension Roller	£11.48 £9.57
2	HP22520-VG8-850 Out of stock	Tension Arm Assy	£49.90 £41.58
3	HP23281-VG8-850 In stock	Drive Sprocket	£41.46 £34.55
4	HP23853-VG8-851 Out of stock	Roller Chain	£66.46 £55.38
5	HP42650-VG8-851 Out of stock	Adjuster Arm Assy	£62.28 £51.90
6	HP42761-VE0-M11 In stock	Bearing Holder Assy	£11.16 £9.30
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£29.36 £24.47
8	HP42780-VA9-F60 Out of stock	Roller	£105.46 £87.88
11	HP76122-VE0-M10 Out of stock	Tension Arm Spring	£7.27 £6.06
12	HP90101-VE0-M10 Out of stock	Cover Bolt	£1.48 £1.23
14	HP90407-VA9-F60 Out of stock	Special Washer 12Mm	£1.10 £0.92
15	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
16	HP90459-107-000 In stock	Washer	£2.51 £2.09
17	HP90501-VE0-M10 In stock	Cover Setting Washer	£3.12 £2.60
19	HP91555-VA9-F60 Out of stock	Arm Collar	£5.62 £4.68
20	HP91555-VG8-850 Out of stock	Collar	£4.44 £3.70
21	HP91556-VA9-F60 Out of stock	Roller Collar	£5.63 £4.69
22	HP91558-VG8-000 Out of stock	Collar 12.7 X 44.5	£4.78 £3.98
23	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
24	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
25	HP94305-50282 Out of stock	Spring Pin 5 X 28	£2.52 £2.10
26	HP95701-0601200 In stock	Bolt	£1.45 £1.21
27	HP95801-0809000 Out of stock	Flange Bolt 8 X 90	£3.49 £2.91
28	HP42952-VG8-870 Out of stock	Adjuster Grip	£1.94 £1.62
29	HP42961-VG8-870 Out of stock	Height Adjuster Lever	£21.38 £17.82
