Honda HRB425C1 - SDEE - MZCF 8000001-8499999 Handle Pipe Diagram

Honda HRB425C1 - SDEE - MZCF 8000001-8499999 Handle Pipe Diagram
Honda HRB425C1 - SDEE - MZCF 8000001-8499999 Handle Pipe Diagram

Description

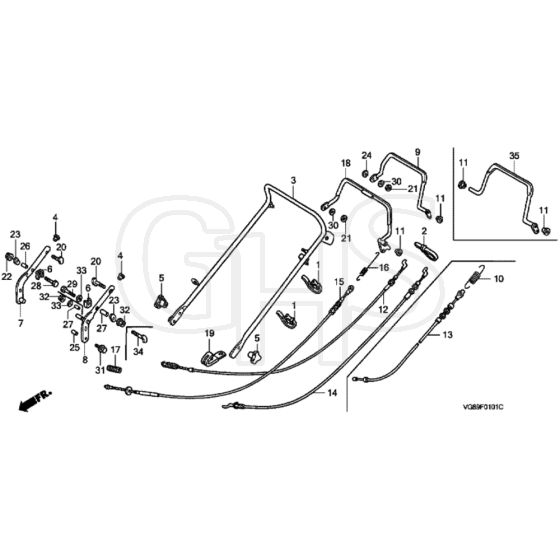

Honda HRB425C1 - SDEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Cable Tie
Cable Tie
HP32901-VE0-850 Out of stock
Cable Tie
£6.30 £5.25

  2 Cable Tie
Cable Tie
HP32901-952-770 Out of stock
Cable Tie
£2.36 £1.97

  3 Handle
Handle
HP53110-VG8-750ZA Out of stock
Handle
£104.28 £86.90

  4 Lower Handle Cap
Lower Handle Cap
HP53115-VA9-K40 Out of stock
Lower Handle Cap
£0.60 £0.50

  5 Handle Grip
Handle Grip
HP53125-VA3-680 In stock
Handle Grip
£11.88 £9.90

  6 Handle Stay Holder
Handle Stay Holder
HP53137-VE2-000 Out of stock
Handle Stay Holder
£8.24 £6.87

  7 Lower Handle
Lower Handle
HP53150-VG8-000ZA Out of stock
Lower Handle
£43.01 £35.84

  8 Lower Handle
Lower Handle
HP53160-VG8-870ZA Out of stock
Lower Handle
£43.01 £35.84

  8 Lower Handle
Lower Handle
HP53160-VG8-000ZA Out of stock
Lower Handle
£46.94 £39.12

  11 Clutch Lever Bush
Clutch Lever Bush
HP54412-952-770 Out of stock
Clutch Lever Bush
£4.62 £3.85

  13 Clutch Cable
Clutch Cable
HP54510-VA9-F61 In stock
Clutch Cable
£29.57 £24.64

  14 O.P.C Cable
O.P.C Cable
HP54530-VG8-752 Out of stock
O.P.C Cable
£25.20 £21.00

  18 Brake Lever
Brake Lever
HP75190-VG9-750 Out of stock
Brake Lever
£98.52 £82.10

  19 Tube Clip
Tube Clip
HP90010-GE0-710 Out of stock
Tube Clip
£4.20 £3.50

  20 Handle Bolt
Handle Bolt
HP90109-VF0-000 In stock
Handle Bolt
£9.24 £7.70

  22 Nut
Nut
HP90443-107-000 Out of stock
Nut
£4.92 £4.10

  22 Flange Nut 8Mm
Flange Nut 8Mm
HP94050-08000 Out of stock
Flange Nut 8Mm
£3.84 £3.20

  25 Lower Stay Collar
Lower Stay Collar
HP91551-VE2-000 Out of stock
Lower Stay Collar
£2.74 £2.28

  26 Collar 12.7 X 25.5
Collar 12.7 X 25.5
HP91554-VG8-000 Out of stock
Collar 12.7 X 25.5
£3.40 £2.83

  27 Collar 12.7 X 44.5
Collar 12.7 X 44.5
HP91558-VG8-000 Out of stock
Collar 12.7 X 44.5
£4.78 £3.98

  28 Bolt
Bolt
HP92101-080600A Out of stock
Bolt
£1.76 £1.47

  30 Plain Washer 8Mm
Plain Washer 8Mm
HP94101-08000 Out of stock
Plain Washer 8Mm
£1.09 £0.91

  31 Flange Bolt 8 X 22
Flange Bolt 8 X 22
HP95701-0802200 Out of stock
Flange Bolt 8 X 22
£2.26 £1.88

  33 Plain Washer 8Mm
Plain Washer 8Mm
HP94103-08000 Out of stock
Plain Washer 8Mm
£0.48 £0.40

  35 Clutch Lever
Clutch Lever
HP54410-VG8-000 Out of stock
Clutch Lever
£30.36 £25.30


Description

Honda HRB425C1 - SDEE Rotary Mower Parts Diagram
