Honda HRB425C1 - SDEE - MZCF 8000001-8499999 Control Diagram

Description

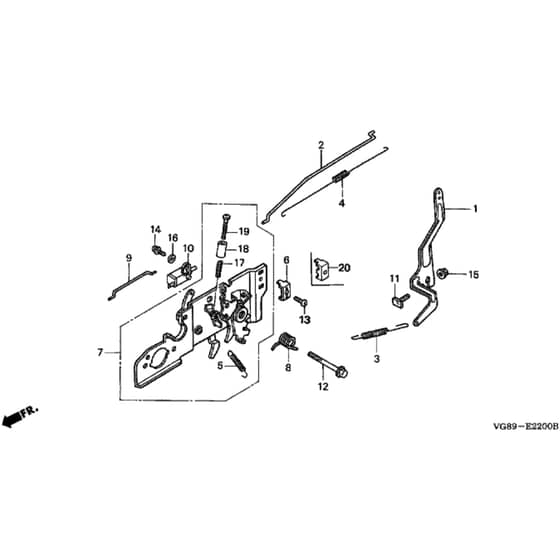

Honda HRB425C1 - SDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16551-ZM0-010 Out of stock	Governor Arm	£11.04 £9.20
2	HP16555-ZM1-000 Out of stock	Governor Rod	£10.45 £8.71
3	HP16561-ZM1-000 Out of stock	Governor Spring	£3.56 £2.97
4	HP16562-ZM1-000 Out of stock	Throttle Return Spring	£4.50 £3.75
5	HP16576-ZE7-300 Out of stock	Lever Spring	£5.28 £4.40
6	HP16576-891-000 Out of stock	Cable Holder	£4.16 £3.47
8	HP16593-ZM0-000 Out of stock	Sprig Lever	£6.30 £5.25
9	HP16674-ZM0-000 Out of stock	Choke Rod	£3.72 £3.10
10	HP35120-ZL8-003 Out of stock	Engine Stop Switch Assy	£13.03 £10.86
11	HP90015-ZE5-010 Out of stock	Governor Arm Bolt	£3.56 £2.97
12	HP90016-ZM0-000 Out of stock	Flange Bolt	£2.47 £2.06
13	HP93500-050160A Out of stock	Screw Pan 5X16	£1.55 £1.29
15	HP94050-06000 In stock	Flange Nut 6Mm	£4.01 £3.34
17	HP16584-883-300 Out of stock	Control Adjusting Spring	£5.14 £4.28
18	HP16599-ZG1-M10 Out of stock	Stopper Collar	£3.11 £2.59
19	HP90016-ZE7-W00 Out of stock	Recessed Screw	£3.18 £2.65
