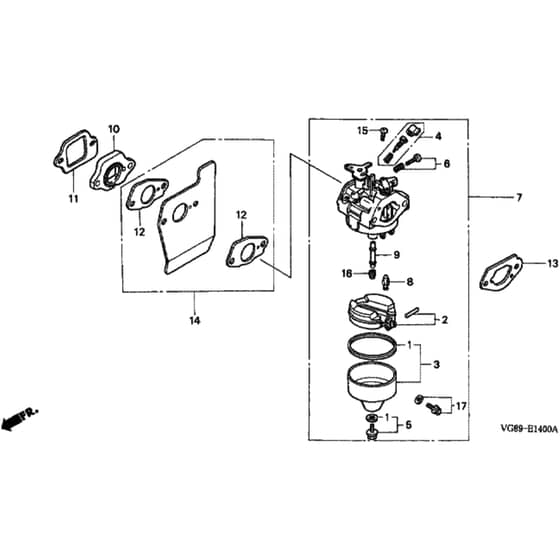

Honda HRB425C1 - QDE - MZCF 8100001-8499999 Carburettor Diagram

Description

Honda HRB425C1 - QDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-883-015 In stock	Gasket Set	£15.29 £12.74
2	HP16013-ZL1-003 Out of stock	Float Set	£38.29 £31.91
3	HP16015-887-782 Out of stock	Float Bowl Set	£47.88 £39.90
4	HP16016-ZG0-W00 Out of stock	Screw Set	£16.18 £13.48
5	HP16028-ZK7-S91 Out of stock	Screw Set	£16.45 £13.71
6	HP16029-ZG0-901 Out of stock	Throttle Stop Screw Set	£15.04 £12.53
7	HP16100-ZM1-825 In stock	Carburettor Assy	£107.64 £89.70
8	HP16155-ZM0-003 Out of stock	Float Valve	£39.02 £32.52
9	HP16166-ZM1-003 Out of stock	Main Nozzle	£40.33 £33.61
10	HP16211-ZL8-000 In stock	Carburettor Insulator	£5.76 £4.80
11	HP16212-ZL8-000 In stock	Insulator Gasket	£3.56 £2.97
12	HP16221-883-800 In stock	Carburettor Gasket	£2.46 £2.05
13	HP16228-ZL8-000 In stock	Carburettor Gasket	£3.17 £2.64
14	HP19650-ZM0-000 Out of stock	Air Guide Assy	£13.76 £11.47
15	HP93500-050-060H Out of stock	Pan Screw	£2.28 £1.90
16	HP99101-1240600 Out of stock	Main Jet	£12.10 £10.08
16	HP99101-124-0580 Out of stock	Jet	£14.00 £11.67
16	HP99101-1240620 Out of stock	Main Jet	£13.48 £11.23
17	HP16024-ZE1-811 Out of stock	Drain Screw Set	£14.40 £12.00
