Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Rear Wheel Diagram

Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Rear Wheel Diagram
Honda HRB425C - SXEE/A - MZCF 8500001-9999999 Rear Wheel Diagram

Description

Honda HRB425C - SXEE/A Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Control Collar
Control Collar
HP16598-ZG1-750 Out of stock
Control Collar
£3.91 £3.26

  2 Axle Shaft
Axle Shaft
HP42310-VG8-800 Out of stock
Axle Shaft
£80.92 £67.43

  3 Pinion Gear
Pinion Gear
HP42661-VH3-850 Out of stock
Pinion Gear
£6.50 £5.42

  4 Pawl Spring
Pawl Spring
HP42668-VE2-800 In stock
Pawl Spring
£1.10 £0.92

  5 Ratchet Key
Ratchet Key
HP42672-VE2-800 In stock
Ratchet Key
£3.84 £3.20

  6 Wheel Cover
Wheel Cover
HP42865-VE0-800ZA Out of stock
Wheel Cover
£19.31 £16.09

  7 Wheel Cap
Wheel Cap
HP42868-VA9-K40 Out of stock
Wheel Cap
£1.49 £1.24

  8 Dust Seal 12Mm
Dust Seal 12Mm
HP42944-VA2-702 Out of stock
Dust Seal 12Mm
£6.37 £5.31

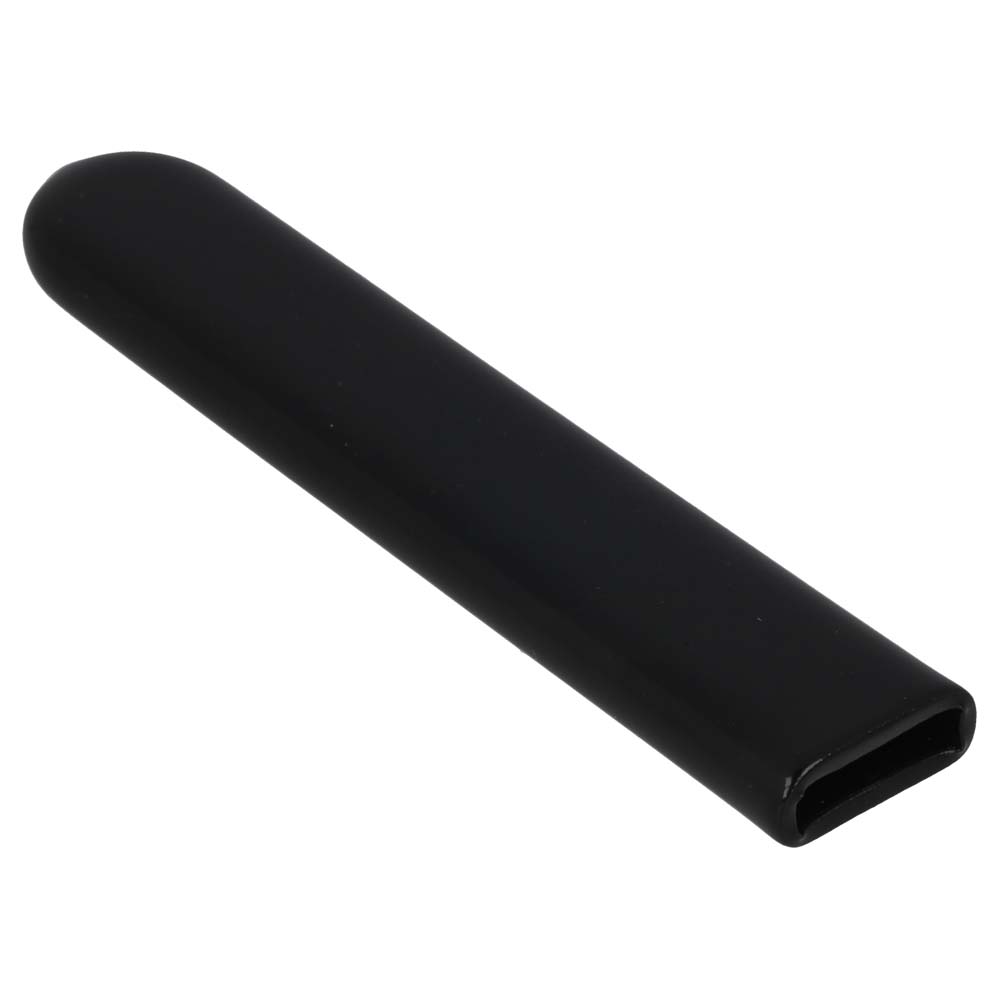

  9 Adjuster Grip
Adjuster Grip
HP42952-VG8-000 In stock
Adjuster Grip
Was £2.48 £2.07 Special Price £1.70 £1.42

  10 Rear Adjuster Plate
Rear Adjuster Plate
HP42961-VG8-000 Out of stock
Rear Adjuster Plate
£28.30 £23.58

  11 Drive Shaft Collar
Drive Shaft Collar
HP41418-VE0-800 Out of stock
Drive Shaft Collar
£12.78 £10.65

  12 Drive Shaft Bush
Drive Shaft Bush
HP44327-VH3-Y10 Out of stock
Drive Shaft Bush
£9.94 £8.28

  13 Rear Wheel Wheel
Rear Wheel Wheel
HP42710-VE0-800ZC Out of stock
Rear Wheel Wheel
£42.53 £35.44

  14 Hub Cap
Hub Cap
HP42719-VE0-851ZA Out of stock
Hub Cap
£3.43 £2.86

  15 Wheel Bolt
Wheel Bolt
HP90110-VA4-000 Out of stock
Wheel Bolt
£4.97 £4.14

  16 Washer
Washer
HP90452-166-600 Out of stock
Washer
£1.50 £1.25

  17 Thrust Washer
Thrust Washer
HP90453-KA3-710 Out of stock
Thrust Washer
£2.48 £2.07

  18 Wheel Washer
Wheel Washer
HP90506-VA9-K41 Out of stock
Wheel Washer
£4.14 £3.45

  18 Wheel Washer
Wheel Washer
HP90455-VA2-000 In stock
Wheel Washer
£3.18 £2.65

  19 Thrust Washer
Thrust Washer
HP90459-360-000 Out of stock
Thrust Washer
£3.48 £2.90

  20 Washer 13Mm
Washer 13Mm
HP90505-VA9-K40 Out of stock
Washer 13Mm
£1.75 £1.46

  22 Bolt
Bolt
HP92101-050120A Out of stock
Bolt
£0.58 £0.48

  23 Plain Washer 5Mm
Plain Washer 5Mm
HP94101-05800 Out of stock
Plain Washer 5Mm
£1.09 £0.91

  24 External Circlip 12Mm
External Circlip 12Mm
HP94510-12000 Out of stock
External Circlip 12Mm
£1.34 £1.12

  25 External Circlip 20Mm
External Circlip 20Mm
HP94510-20000 Out of stock
External Circlip 20Mm
£1.60 £1.33

  26 Wheel Bush
Wheel Bush
HP42716-VE0-800 In stock
Wheel Bush
£3.48 £2.90
