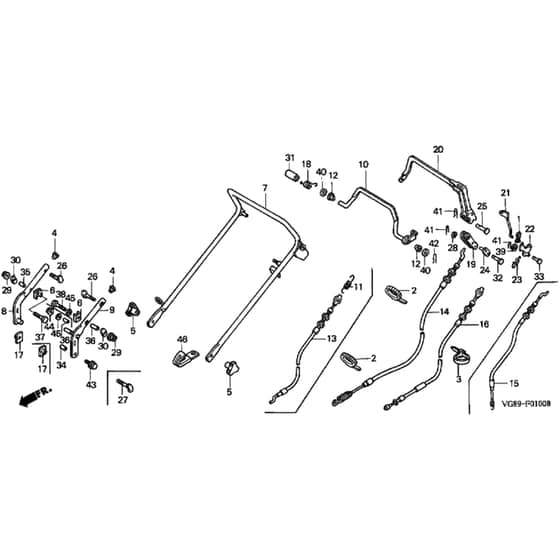

Honda HRB425C - SXE - MZCF 8000001-8499999 Handle Pipe Diagram

Description

Honda HRB425C - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Out of stock	Rod Joint	£8.52 £7.10
2	HP32901-VE0-850 Out of stock	Cable Tie	£6.30 £5.25
3	HP32901-952-770 Out of stock	Cable Tie	£2.36 £1.97
4	HP53115-VA9-K40 Out of stock	Lower Handle Cap	£0.60 £0.50
5	HP53125-VA3-680 In stock	Handle Grip	£11.88 £9.90
6	HP53137-VE2-000 Out of stock	Handle Stay Holder	£8.24 £6.87
7	HP53110-VG8-000ZA Out of stock	Handle	£127.88 £106.57
8	HP53150-VG8-000ZA Out of stock	Lower Handle	£43.01 £35.84
9	HP53160-VG8-000ZA Out of stock	Lower Handle	£46.94 £39.12
10	HP54410-VA9-H50 Out of stock	Clutch Lever Assy	£78.72 £65.60
12	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
14	HP54510-VA9-H51 In stock	Clutch Cable	£26.64 £22.20
15	HP54530-VE0-L01 In stock	Roto-Stop Cable (ser no. 8079201 +)	£29.34 £24.45
16	HP54530-VG8-003 In stock	Roto-Stop Cable (up to ser no. 8079200)	£25.85 £21.54
17	HP61304-165-013 Out of stock	Head Light Set Nut	£5.57 £4.64
18	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
19	HP75128-VE0-L00 Out of stock	Cable Arm	£14.41 £12.01
20	HP75161-VE0-L01 Out of stock	Roto-Stop Lever Assy	£58.56 £48.80
21	HP75165-VE0-L00 Out of stock	Ratchet Push Rod	£9.96 £8.30
22	HP75166-VE0-L00 Out of stock	Lock Lever	£7.10 £5.92
23	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
24	HP75192-VE0-L00 Out of stock	Lock Lever Pin Assy (up to ser no. 8079200)	£2.04 £1.70
25	HP90106-VA4-800 Out of stock	Clutch Lever Pin	£9.95 £8.29
26	HP90109-VF0-000 In stock	Handle Bolt	£9.24 £7.70
27	HP90109-VG8-000 Out of stock	Handle Bolt	£1.36 £1.13
28	HP90407-VG8-000 Out of stock	Special Washer 5mm (up to ser no. 8079200)	£1.01 £0.84
29	HP90443-107-000 Out of stock	Nut	£4.92 £4.10
30	HP90501-898-000 Out of stock	Frame Joint Washer	£3.96 £3.30
31	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
32	HP90754-VA9-P40 Out of stock	Cable Joint Pin (ser no. 8079201 +)	£3.08 £2.57
32	HP90702-VE0-L01 Out of stock	Cable Joint Pin (up to ser no. 8079200)	£3.24 £2.70
33	HP90753-VA3-J00 In stock	Lever Hinge Lock Pin	£4.80 £4.00
34	HP91551-VE2-000 Out of stock	Lower Stay Collar	£2.74 £2.28
35	HP91554-VG8-000 Out of stock	Collar 12.7 X 25.5	£3.40 £2.83
36	HP91558-VG8-000 Out of stock	Collar 12.7 X 44.5	£4.78 £3.98
37	HP92101-080600A Out of stock	Bolt	£1.76 £1.47
39	HP90407-952-300 Out of stock	Special Washer 6Mm	£4.10 £3.42
40	HP94101-08000 Out of stock	Plain Washer 8Mm	£1.09 £0.91
41	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
42	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
43	HP95701-0802200 Out of stock	Flange Bolt 8 X 22	£2.26 £1.88
44	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
45	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
