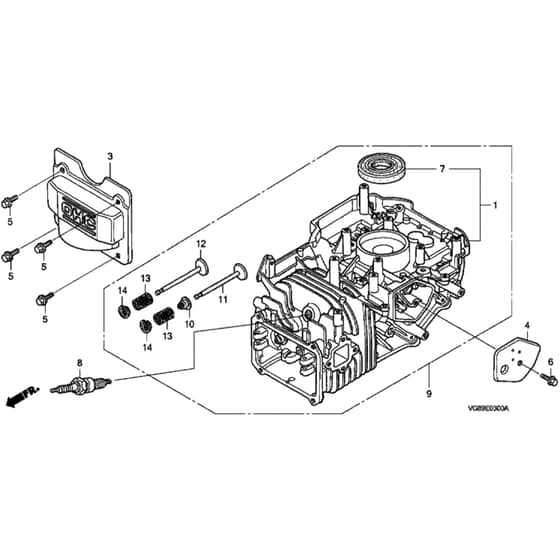

Honda HRB425C - SXE - MZCF 8000001-8499999 Cylinder Barrel Diagram

Name: Honda HRB425C - SXE - MZCF 8000001-8499999 Cylinder Barrel Diagram
SKU: hrb425c_sxe_mzcf_8000001_8499999_cylinder_barrel-group
Price: 2.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C - SXE - MZCF 8000001-8499999 Cylinder Barrel Diagram

Description

Honda HRB425C - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12000-ZL9-425 Out of stock	Cylinder Assy	£250.20 £208.50
3	HP12311-ZL8-D00 Out of stock	Rocker Cover	£9.36 £7.80
4	HP12355-ZL8-000 Out of stock	Breather Cover Assy	£11.27 £9.39
5	HP90013-883-000 Out of stock	Flange Bolt 6 X 12	£4.63 £3.86
6	HP90014-952-000 Out of stock	Flange Bolt 6 X 14	£3.95 £3.29
7	HP91201-ZL8-003 Out of stock	Oil Seal 25.4 X 62 X 6	£10.12 £8.43
8	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.92 £2.43
11	HP14711-ZL8-000 Out of stock	Inlet Valve	£11.12 £9.27
12	HP14721-ZL8-000 Out of stock	Exhaust Valve	£14.46 £12.05
13	HP14751-ZL8-000 Out of stock	Valve Spring	£2.82 £2.35
14	HP14771-ZE1-000 Out of stock	Exhaust Valve Spring Retainer	£9.66 £8.05
