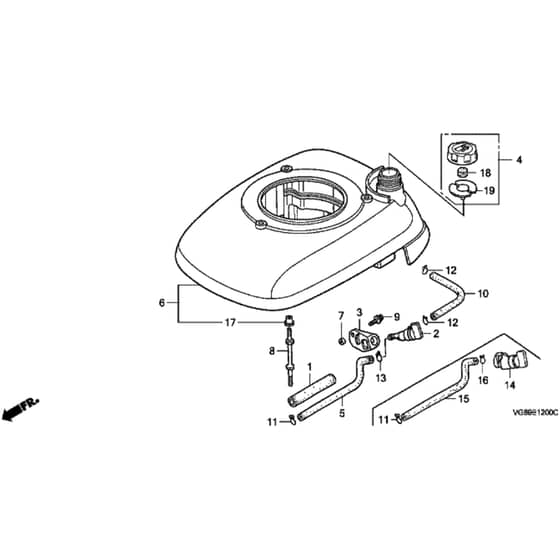

Honda HRB425C - SQEE/A - MZCF 8500001-9999999 Fan Cover Diagram

Honda HRB425C - SQEE/A - MZCF 8500001-9999999 Fan Cover Diagram
Honda HRB425C - SQEE/A - MZCF 8500001-9999999 Fan Cover Diagram

Description

Honda HRB425C - SQEE/A Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Support Rubber
Support Rubber
HP16854-ZH8-000 Out of stock
Support Rubber
£3.98 £3.32

  2 Fuel Tap Assy (up to eng no. 1694819)
Fuel Tap Assy (up to eng no. 1694819)
1271 In stock
Fuel Tap Assy (up to eng no. 1694819)
£5.06 £4.22

  3 Fuel Tap Bracket (up to eng no. 1623712)
Fuel Tap Bracket (up to eng no. 1623712)
HP16956-ZM0-000 Out of stock
Fuel Tap Bracket (up to eng no. 1623712)
£3.53 £2.94

  4 Fuel Cap Assy
Fuel Cap Assy
HP17620-ZL8-023 In stock
Fuel Cap Assy
£13.94 £11.62

  5 Fuel Pipe (up to eng no. 1694818)
Fuel Pipe (up to eng no. 1694818)
HP17702-ZM0-000 Out of stock
Fuel Pipe (up to eng no. 1694818)
£12.16 £10.13

  6 Fan Cover Assy
Fan Cover Assy
HP19610-ZM0-J11ZC Out of stock
Fan Cover Assy
£68.76 £57.30

  7 Collar
Collar
HP33609-GK4-620 Out of stock
Collar
£4.08 £3.40

  8 Stud
Stud
HP90043-ZL8-000 Out of stock
Stud
£4.36 £3.63

  9 Washer
Washer
HP93891-0501008 Out of stock
Washer
£1.90 £1.58

  10 Fuel Pipe
Fuel Pipe
HP95001-5500160M Out of stock
Fuel Pipe
£29.93 £24.94

  11 Tube Clip
Tube Clip
HP95002-02080 In stock
Tube Clip
£1.24 £1.03

  12 Tube Clip
Tube Clip
HP95002-02100 Out of stock
Tube Clip
£1.44 £1.20

  13 Tube Clip (up to eng no. 1694818)
Tube Clip (up to eng no. 1694818)
HP95002-50000 Out of stock
Tube Clip (up to eng no. 1694818)
£1.10 £0.92

  14 Fuel Tap Assy (eng no. 1694819 +)
Fuel Tap Assy (eng no. 1694819 +)
HP16950-ZM0-003 Out of stock
Fuel Tap Assy (eng no. 1694819 +)
£42.88 £35.73

  15 Fuel Pipe (eng no. 1694819 +)
Fuel Pipe (eng no. 1694819 +)
HP17702-ZM0-800 In stock
Fuel Pipe (eng no. 1694819 +)
£12.16 £10.13

  17 Fan Cover Collar
Fan Cover Collar
HP19619-ZL8-300 Out of stock
Fan Cover Collar
£1.58 £1.32

  18 Breather Sponge
Breather Sponge
HP17622-888-010 Out of stock
Breather Sponge
£1.68 £1.40

  19 Fuel Cap Gasket
Fuel Cap Gasket
HP17624-ZE7-000 Out of stock
Fuel Cap Gasket
£3.61 £3.01


Description

Honda HRB425C - SQEE/A Rotary Mower Parts Diagram
