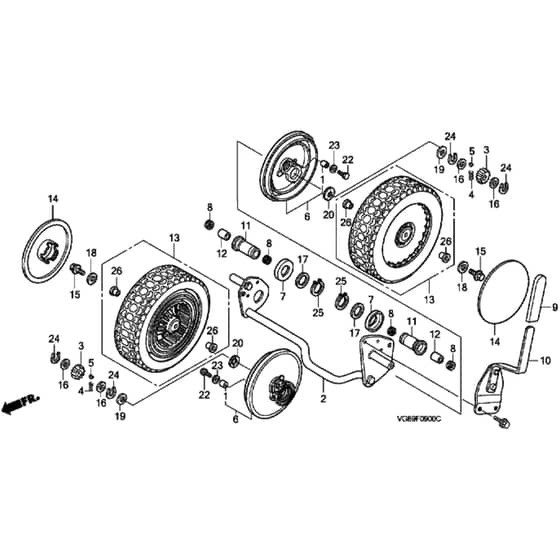

Honda HRB425C - SDEE/A - MZCF 8500001-9999999 Rear Wheel Diagram

Honda HRB425C - SDEE/A - MZCF 8500001-9999999 Rear Wheel Diagram
Honda HRB425C - SDEE/A - MZCF 8500001-9999999 Rear Wheel Diagram

Description

Honda HRB425C - SDEE/A Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Control Collar HP16598-ZG1-750
Control Collar
Out of stock
£3.91 £3.26

  2 Axle Shaft HP42310-VG8-800
Axle Shaft
Out of stock
£80.92 £67.43

  3 Pinion Gear HP42661-VH3-850
Pinion Gear
Out of stock
£6.50 £5.42

  4 Pawl Spring HP42668-VE2-800
Pawl Spring
In stock
£1.10 £0.92

  5 Ratchet Key HP42672-VE2-800
Ratchet Key
In stock
£3.84 £3.20

  6 Wheel Cover HP42865-VE0-800ZA
Wheel Cover
Out of stock
£19.31 £16.09

  7 Wheel Cap HP42868-VA9-K40
Wheel Cap
Out of stock
£1.49 £1.24

  8 Dust Seal 12Mm HP42944-VA2-702
Dust Seal 12Mm
Out of stock
£6.37 £5.31

  9 Adjuster Grip HP42952-VG8-000
Adjuster Grip
Out of stock
£2.48 £2.07

  10 Rear Adjuster Plate HP42961-VG8-000
Rear Adjuster Plate
Out of stock
£28.30 £23.58

  11 Drive Shaft Collar HP41418-VE0-800
Drive Shaft Collar
Out of stock
£12.78 £10.65

  12 Drive Shaft Bush HP44327-VH3-Y10
Drive Shaft Bush
In stock
£9.94 £8.28

  13 Rear Wheel Wheel HP42710-VE0-800ZC
Rear Wheel Wheel
Out of stock
£42.53 £35.44

  14 Hub Cap HP42719-VE0-851ZA
Hub Cap
Out of stock
£3.43 £2.86

  15 Wheel Bolt HP90110-VA4-000
Wheel Bolt
Out of stock
£4.97 £4.14

  16 Washer HP90452-166-600
Washer
Out of stock
£1.50 £1.25

  17 Thrust Washer HP90453-KA3-710
Thrust Washer
Out of stock
£2.48 £2.07

  18 Wheel Washer HP90506-VA9-K41
Wheel Washer
Out of stock
£4.14 £3.45

  18 Wheel Washer HP90455-VA2-000
Wheel Washer
In stock
£3.18 £2.65

  19 Thrust Washer HP90459-360-000
Thrust Washer
Out of stock
£3.48 £2.90

  20 Washer 13Mm HP90505-VA9-K40
Washer 13Mm
Out of stock
£1.75 £1.46

  22 Bolt HP92101-050120A
Bolt
Out of stock
£0.58 £0.48

  23 Plain Washer 5Mm HP94101-05800
Plain Washer 5Mm
Out of stock
£1.09 £0.91

  24 External Circlip 12Mm HP94510-12000
External Circlip 12Mm
Out of stock
£1.34 £1.12

  25 External Circlip 20Mm HP94510-20000
External Circlip 20Mm
Out of stock
£1.60 £1.33

  26 Wheel Bush HP42716-VE0-800
Wheel Bush
In stock
£3.48 £2.90


Description

Honda HRB425C - SDEE/A Rotary Mower Parts Diagram
