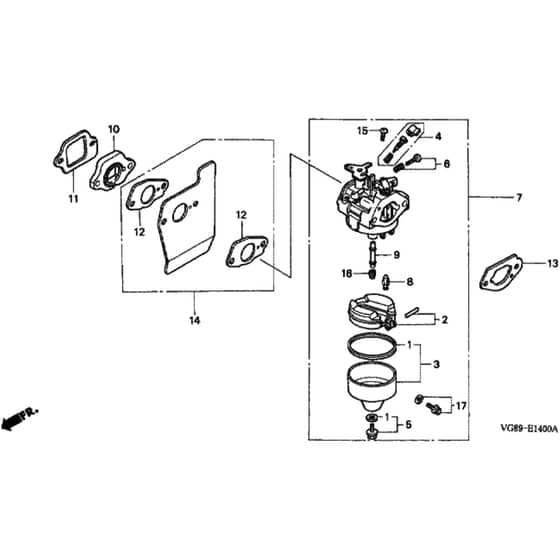

Honda HRB425C - QXEE - MZCF 8000001-8499999 Carburettor Diagram

Honda HRB425C - QXEE - MZCF 8000001-8499999 Carburettor Diagram
Honda HRB425C - QXEE - MZCF 8000001-8499999 Carburettor Diagram

Description

Honda HRB425C - QXEE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Gasket Set
Gasket Set
HP16010-883-015 In stock
Gasket Set
£15.29 £12.74

  2 Float Set
Float Set
HP16013-ZL1-003 Out of stock
Float Set
£38.29 £31.91

  3 Float Bowl Set
Float Bowl Set
HP16015-887-782 Out of stock
Float Bowl Set
£47.88 £39.90

  4 Screw Set
Screw Set
HP16016-ZG0-W00 Out of stock
Screw Set
£16.18 £13.48

  5 Screw Set
Screw Set
HP16028-ZK7-S91 Out of stock
Screw Set
£16.45 £13.71

  6 Throttle Stop Screw Set
Throttle Stop Screw Set
HP16029-ZG0-901 Out of stock
Throttle Stop Screw Set
£15.04 £12.53

  7 Carburettor Assy
Carburettor Assy
HP16100-ZM1-825 In stock
Carburettor Assy
£107.64 £89.70

  8 Float Valve
Float Valve
HP16155-ZM0-003 Out of stock
Float Valve
£39.02 £32.52

  9 Main Nozzle
Main Nozzle
HP16166-ZM1-003 Out of stock
Main Nozzle
£40.33 £33.61

  10 Carburettor Insulator
Carburettor Insulator
HP16211-ZL8-000 In stock
Carburettor Insulator
£5.76 £4.80

  11 Insulator Gasket
Insulator Gasket
HP16212-ZL8-000 In stock
Insulator Gasket
£3.56 £2.97

  12 Carburettor Gasket
Carburettor Gasket
HP16221-883-800 In stock
Carburettor Gasket
£2.46 £2.05

  13 Carburettor Gasket
Carburettor Gasket
HP16228-ZL8-000 In stock
Carburettor Gasket
£3.17 £2.64

  14 Air Guide Assy
Air Guide Assy
HP19650-ZM0-000 In stock
Air Guide Assy
£13.76 £11.47

  15 Pan Screw
Pan Screw
HP93500-050-060H Out of stock
Pan Screw
£2.28 £1.90

  16 Jet
Jet
HP99101-1240550 Out of stock
Jet
£12.50 £10.42

  16 Jet
Jet
HP99101-124-0580 Out of stock
Jet
£14.00 £11.67

  16 Main Jet
Main Jet
HP99101-1240600 Out of stock
Main Jet
£12.10 £10.08

  17 Drain Screw Set
Drain Screw Set
HP16024-ZE1-811 Out of stock
Drain Screw Set
£14.40 £12.00


Description

Honda HRB425C - QXEE Rotary Mower Parts Diagram
