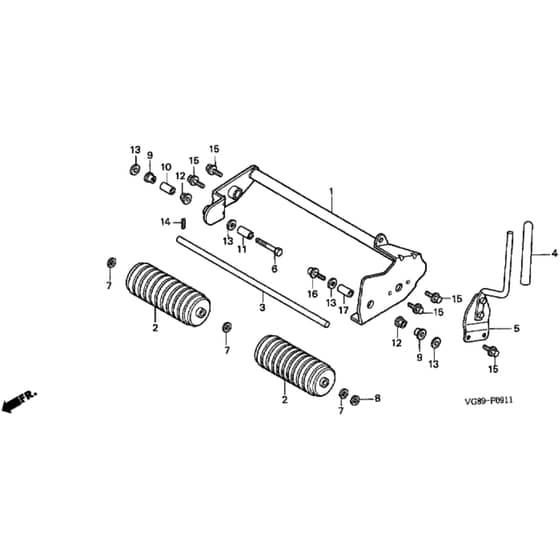

Honda HRB425C - QDEE - MZCF 8000001-8499999 Roller Diagram

Description

Honda HRB425C - QDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP42780-VA9-811 In stock	Roller	£58.80 £49.00
3	HP42947-VG8-870 Out of stock	Roller Shaft	£49.49 £41.24
4	HP42952-VG8-870 Out of stock	Adjuster Grip	£1.94 £1.62
5	HP42961-VG8-870 Out of stock	Height Adjuster Lever	£21.38 £17.82
6	HP90101-VE0-M10 Out of stock	Cover Bolt	£1.48 £1.23
7	HP90451-107-000 Out of stock	Washer	£2.94 £2.45
8	HP90455-VA5-700 In stock	Axle Washer	£5.16 £4.30
9	HP90501-VE0-M10 In stock	Cover Setting Washer	£3.12 £2.60
10	HP91555-VG8-850 Out of stock	Collar	£4.44 £3.70
11	HP91558-VG8-000 Out of stock	Collar 12.7 X 44.5	£4.78 £3.98
12	HP94050-08000 Out of stock	Flange Nut 8Mm	£3.84 £3.20
13	HP94103-08000 Out of stock	Plain Washer 8Mm	£0.48 £0.40
14	HP94305-50252 Out of stock	Spring Pin 5 X 25	£2.84 £2.37
15	HP95701-0601200 In stock	Bolt	£1.45 £1.21
16	HP95801-0809000 Out of stock	Flange Bolt 8 X 90	£3.49 £2.91
17	HP91556-VG8-870 Out of stock	Collar	£4.73 £3.94
