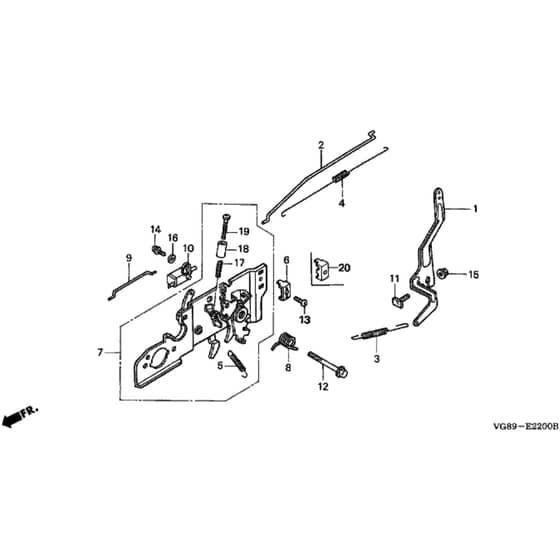

Honda HRB425C - PDEE/A - MZCF 8500001-9999999 Control Diagram

Name: Honda HRB425C - PDEE/A - MZCF 8500001-9999999 Control Diagram
SKU: hrb425c_pdee_a_mzcf_8500001_9999999_control-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB425C - PDEE/A - MZCF 8500001-9999999 Control Diagram

Description

Honda HRB425C - PDEE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16551-ZM0-010 Out of stock	Governor Arm	£11.04 £9.20
2	HP16555-ZM1-000 Out of stock	Governor Rod	£10.45 £8.71
3	HP16561-ZM1-000 Out of stock	Governor Spring	£3.56 £2.97
4	HP16562-ZM1-000 Out of stock	Throttle Return Spring	£4.50 £3.75
5	HP16576-ZE7-300 Out of stock	Lever Spring	£5.28 £4.40
6	HP16576-891-000 Out of stock	Cable Holder (up to eng no. 1811604)	£4.16 £3.47
7	HP16580-ZM1-J02 Out of stock	Control Base	£43.64 £36.37
8	HP16593-ZM0-000 Out of stock	Sprig Lever	£6.30 £5.25
9	HP16674-ZM0-000 Out of stock	Choke Rod	£3.72 £3.10
11	HP90015-ZE5-010 Out of stock	Governor Arm Bolt	£3.56 £2.97
12	HP90016-ZM0-000 Out of stock	Flange Bolt	£2.47 £2.06
13	HP93500-050160A Out of stock	Screw Pan 5X16	£1.55 £1.29
15	HP94050-06000 In stock	Flange Nut 6Mm	£4.01 £3.34
20	HP16617-VG3-000 Out of stock	Cable Holder (eng no.. 1811605 +)	£2.18 £1.82
